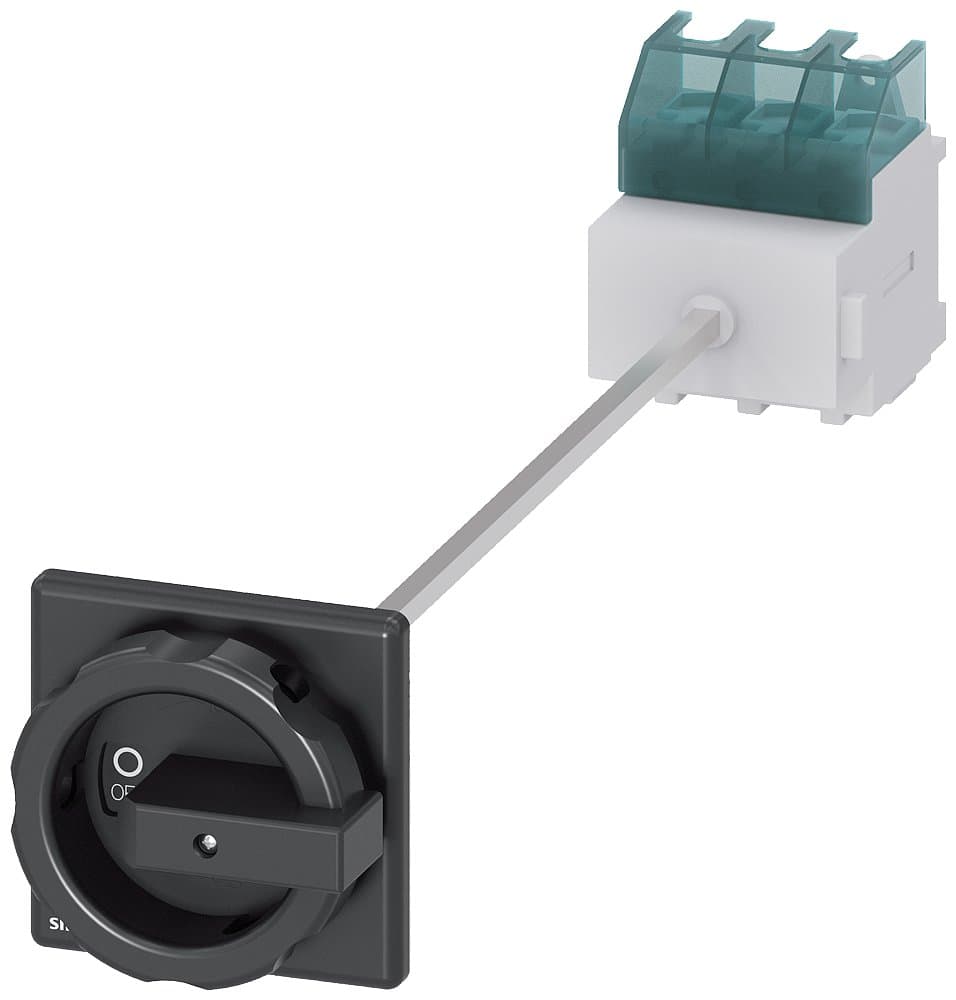

3LD2514-0TK51
Product ID:216367
Updated: 2026/4/3
Key Features
- 1Handle high 63 A current and 22 kW power loads reliably. 2、Install easily with bottom-fixed, 4-hole mounting system. 3、Ensure operator safety with integrated door interlock mechanism. 4、Save panel space with compact 106x90x468.5 mm dimensions. 5、Rely on robust Siemens construction for long-term durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 63A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixation, AC-23A/22KW | Installation Type: | Base-Mounted Installation, Cabinet Door with Four-Hole Fixation |
| Other: | AC-23A/22KW | Number of Poles: | 3P |
| In(A): | 63 | Specification: | 3LD25【63A】 |
| Switch Type: | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2514-0TK51 |
Specifications may be subject to change without notice
