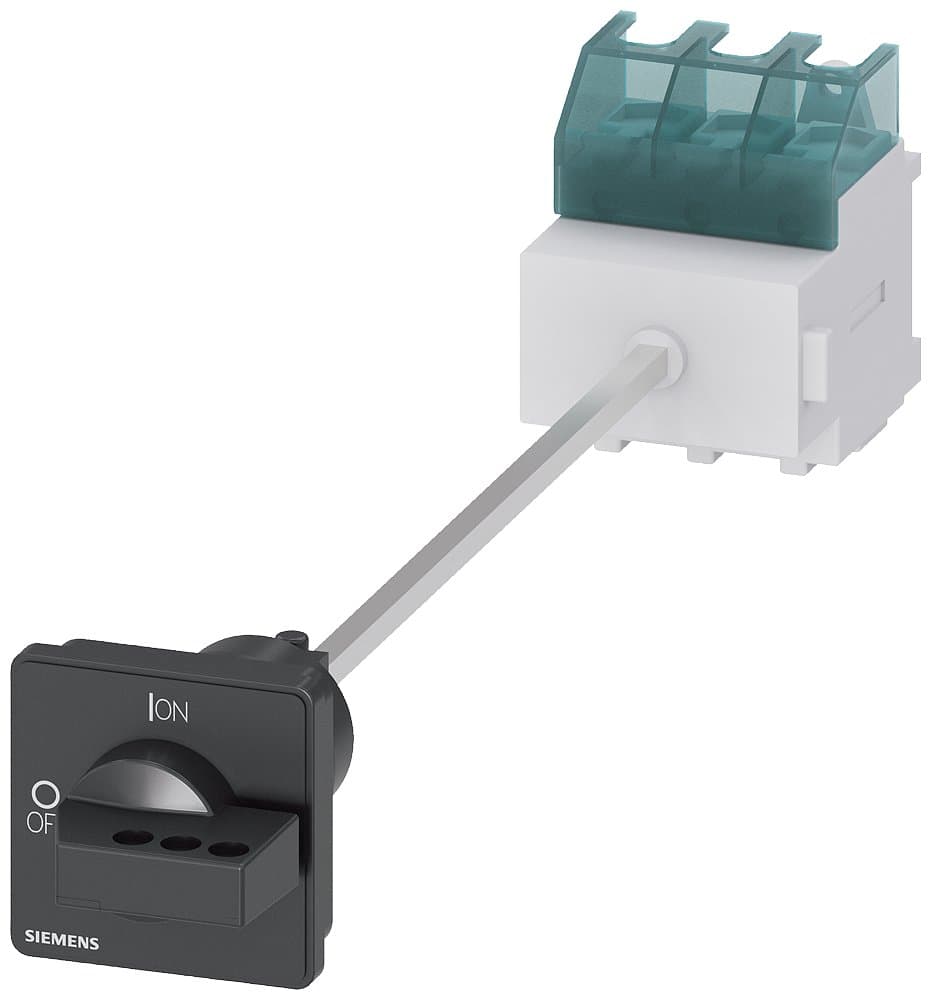

3LD2517-0TK11
Product ID:134938
Updated: 2026/4/6
Key Features
- 1Ensure secure operation with a defeatable knob-operated safety mechanism. 2、Handle versatile applications from main control to emergency stop functions. 3、Manage high power loads of 22 kW at 400 V AC efficiently. 4、Protect against harsh conditions with a robust IP65 enclosure. 5、Simplify setup using the straightforward 4-hole handle mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P, Removable door coupled rotary operation mechanism, black handle, base-mounted installation, cabinet door four-hole mounting, AC-23A/22KW, UL508 Certified | Installation Type: | Base-Mounted Installation, Cabinet Door Four-Hole Mounting |
| Other: | AC-23A/22KW, UL508 Certified | Poles: | 3P |
| In(A): | 63 | Specification: | 3LD25【63A】 |
| Switch Type: | Removable Door Coupled Rotary Operation Mechanism with Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model | 3LD2517-0TK11 |
Specifications may be subject to change without notice
