Key Features
- 1Ensure safe electrical isolation with a reliable 3-pole emergency stop design.
- 2Handle high-current loads precisely with a 63 A amperage rating.
- 3Support substantial 22 kW operating power at 400 V AC.
- 4Simplify installation via convenient floor mounting with door coupling.
- 5Enable immediate emergency shutdown for critical safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

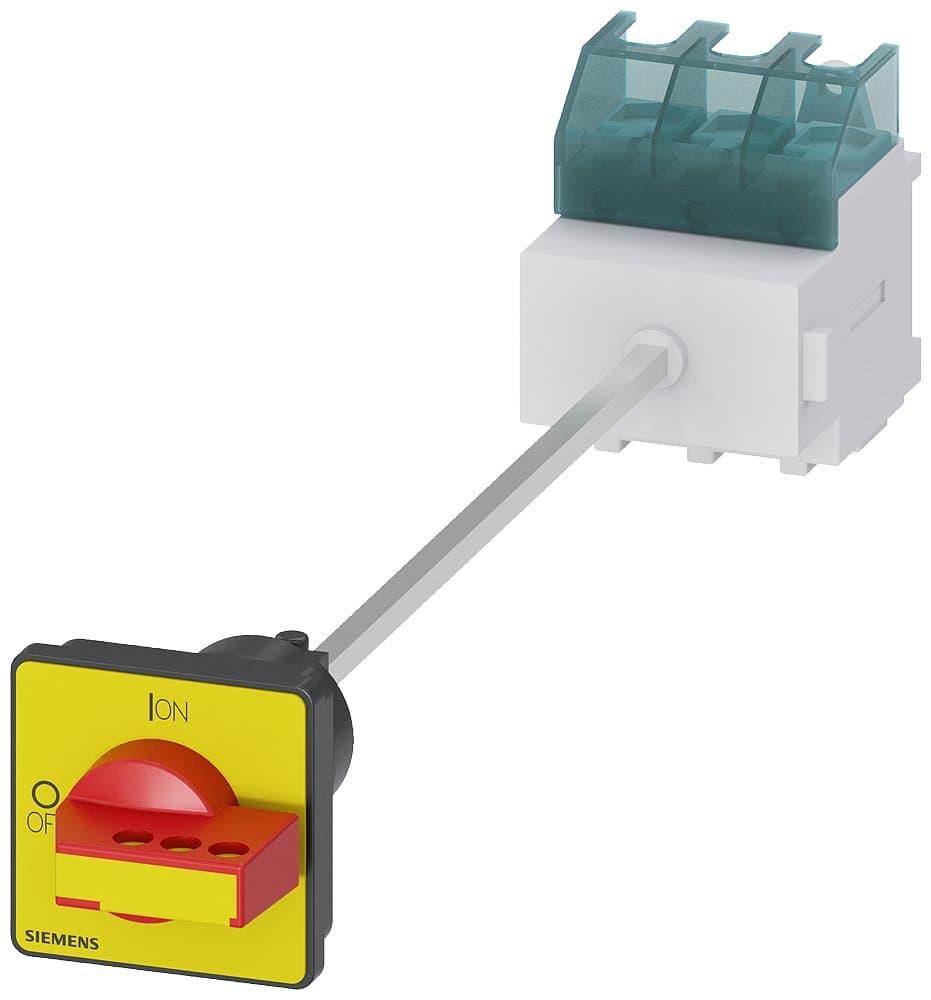

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, with removable door coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole fixation, AC-23A/22KW, UL508 certified | Installation Type | Base-mounted Installation, Cabinet Door with Four-Hole Fixation |
| Other | AC-23A/22KW, UL508 Certified | Number of Poles | 3P |
| In(A) | 63 | Specification | 3LD25【63A】 |
| Switch Type | With Removable Door Coupled Rotary Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2517-0TK13 |
Specifications may be subject to change without notice
