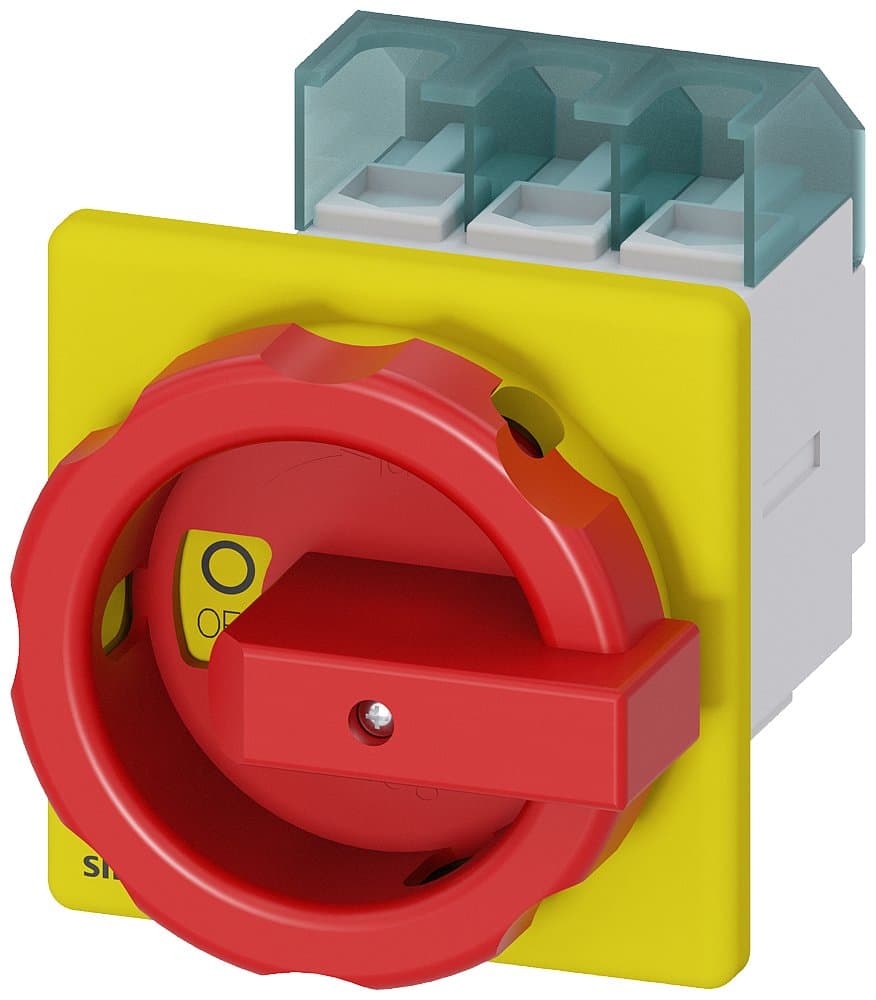

3LD2555-0TK53
Product ID:195320
Updated: 2026/7/3
Key Features
- 1Quickly disconnect power in emergencies with reliable switching-off capability.
- 2Handle high-current applications rated for up to 63 A.
- 3Access the convenient front-mounted rotary operating mechanism easily.
- 4Save panel space with a compact, center-mounted 22.5mm handle design.
- 5Ensure long-lasting performance in demanding industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, red/yellow handle, mounting in the center hole of the cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type | Mounting in the center hole of the cabinet door |
| Other | AC-3/18.5KW; AC-23A/22KW | Poles | 3P |
| In(A) | 63 | Specification | 3LD25【63A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2555-0TK53 |
Specifications may be subject to change without notice
