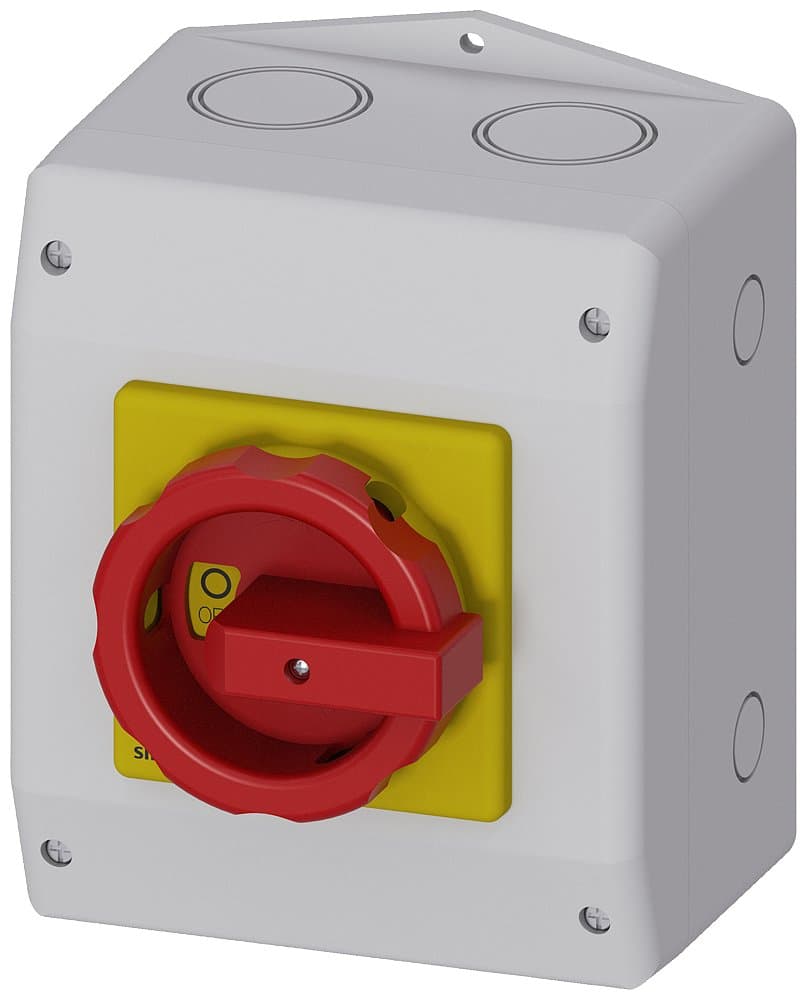

3LD2565-1GP53
Product ID:136355
Updated: 2026/7/3
Key Features
- 1Handle high-voltage applications with 63 A Iu and 22 kW operating power.
- 2Execute emergency switching-off for quick and safe circuit disconnection.
- 3Protect components with durable molded plastic encapsulation against environmental factors.
- 4Operate easily using the distinct red and yellow rotary drive mechanism.
- 5Install flexibly in various setups thanks to the compact and versatile design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, metric threaded sealed connector, red/yellow handle, plastic housing installation, AC-23A/22KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
| Terminal Type | N | Other | AC-23A/22KW, 1NO+1NC |
| Poles | 3P | In(A) | 63 |
| Specification | 3LD25【63A】 | Switch Type | Metric Threaded Sealed Connector, Red/Yellow Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2565-1GP53 |
Specifications may be subject to change without notice
