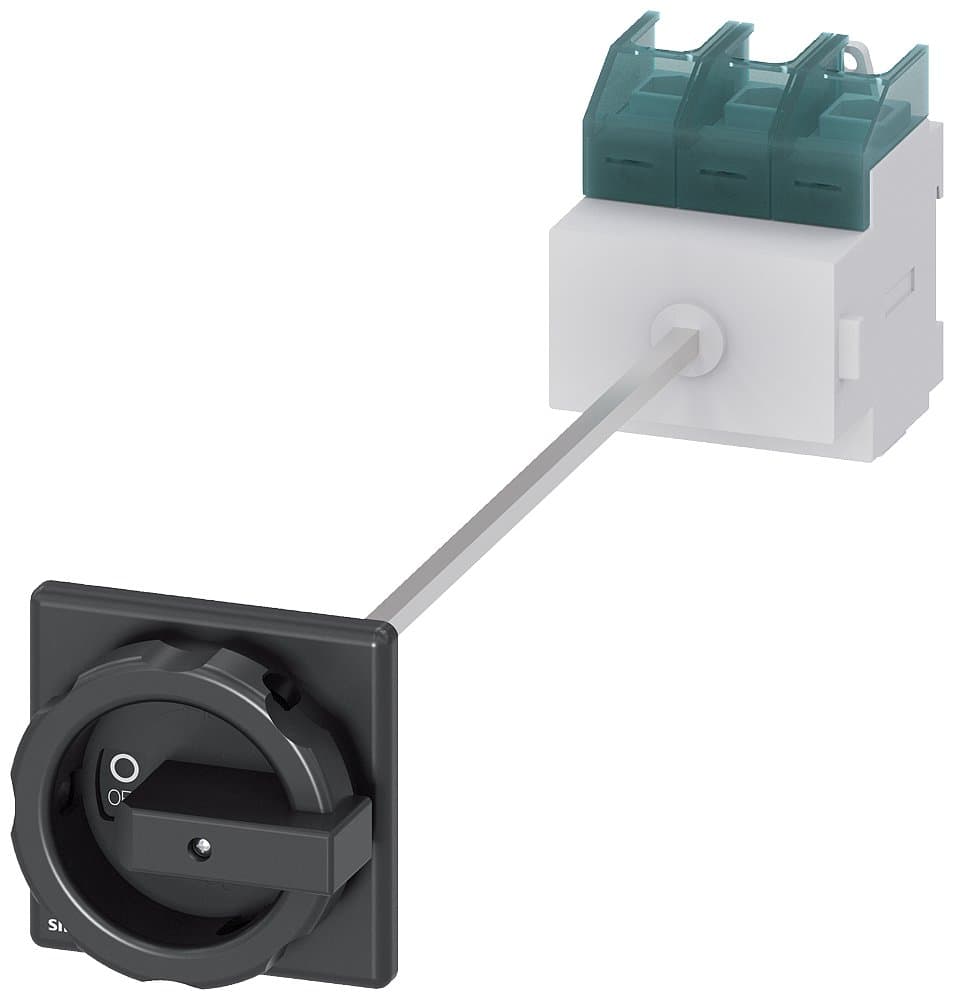

3LD2714-0TK51
Product ID:181969
Updated: 2026/4/5
Key Features
- 1Control high-power circuits reliably with a 100A current rating. 2、Deliver up to 37 kW operating power at AC-23A/400V. 3、Install easily using the floor-mount design with door coupling. 4、Ensure safety with the trusted Siemens SENTRON product line protection. 5、Benefit from a robust 3-pole main switch design for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 100A, 3P, with door-coupled rotary operating mechanism, black handle, base-mounted installation, cabinet door four-hole mounting, AC-23A/37KW | Installation Type: | Base-mounted installation, cabinet door four-hole mounting |
| Other: | AC-23A/37KW | Number of Poles: | 3P |
| In(A): | 100 | Specification: | 3LD27【100A】 |
| Switch Type: | With door-coupled rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2714-0TK51 |
Specifications may be subject to change without notice
