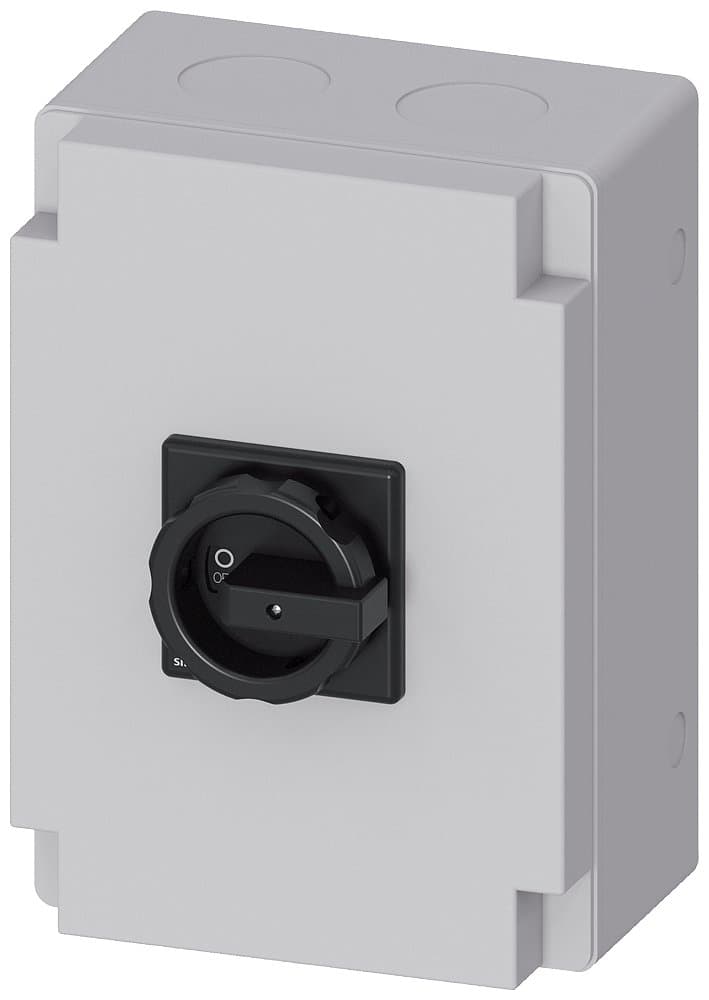

3LD2766-1GP51
Product ID:186640
Updated: 2026/8/10
Key Features
- 1Handle up to 37 kW of operating power for demanding applications.
- 2Utilize a robust molded-plastic encapsulation for secure metric connections.
- 3Operate reliably with a rotary mechanism featuring 1 NC and 1 NO contact.
- 4Deploy this versatile 3-pole main switch across various industrial settings.
- 5Ensure compliance and safety by meeting RoHS and WEEE directives.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 100A, 3P, Metric Thread Sealed Connector, Black Handle, Plastic Housing Installation, AC-23A/37KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
| Terminal Type | N | Other | AC-23A/37KW, 1NO+1NC |
| Number of Poles | 3P | In(A) | 100 |
| Specification | 3LD27【100A】 | Switch Type | Metric Thread Sealed Connector, Black Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2766-1GP51 |
Specifications may be subject to change without notice
