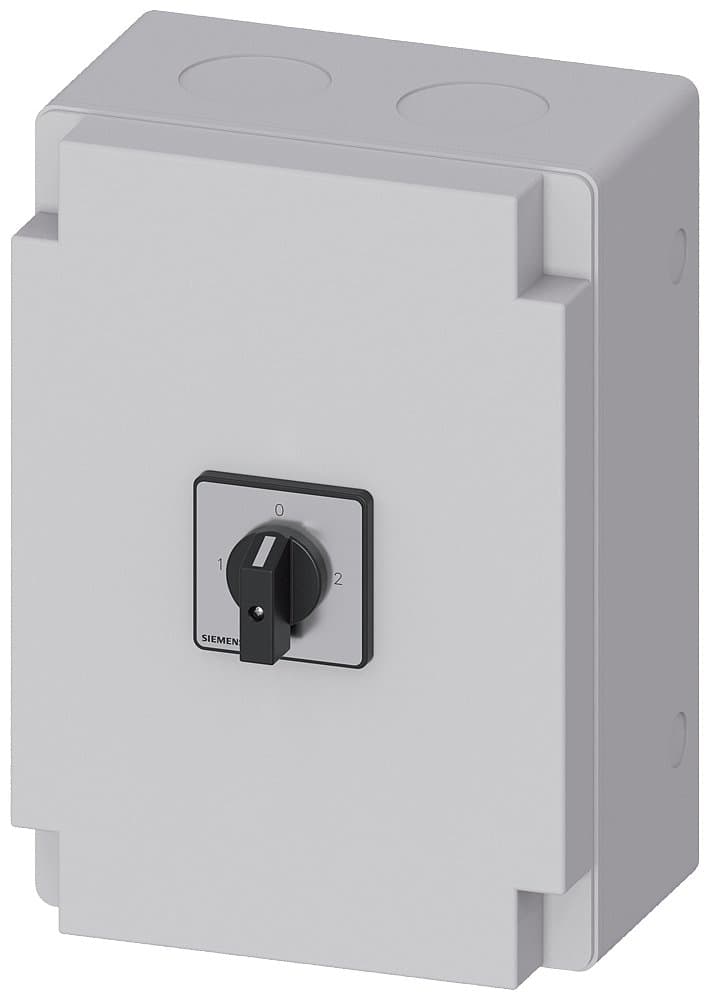

3LD2766-7UB01
Product ID:158068
Updated: 2026/7/3
Key Features
- 1Handle high currents up to 100 A for demanding applications.
- 2Utilize molded-plastic encapsulation for enhanced durability and safety.
- 3Achieve efficient 37 kW power switching at AC-23/400V.
- 4Install the compact, IP65-protected design in tight spaces.
- 5Apply it for load transfer and motor control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, Main control and emergency stop switch, 3LD2, 100A, 3P, Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle, Plastic enclosure mounting, AC-3/30.5kW; AC-23A/37kW | Mounting Type | Plastic enclosure mounting |
| Terminal Type | PE+N | Other | AC-3/30.5kW; AC-23A/37kW |
| Number of Poles | 3P | In(A) | 100 |
| Specification | 3LD27【100A】 | Switch Type | Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2766-7UB01 |
Specifications may be subject to change without notice
