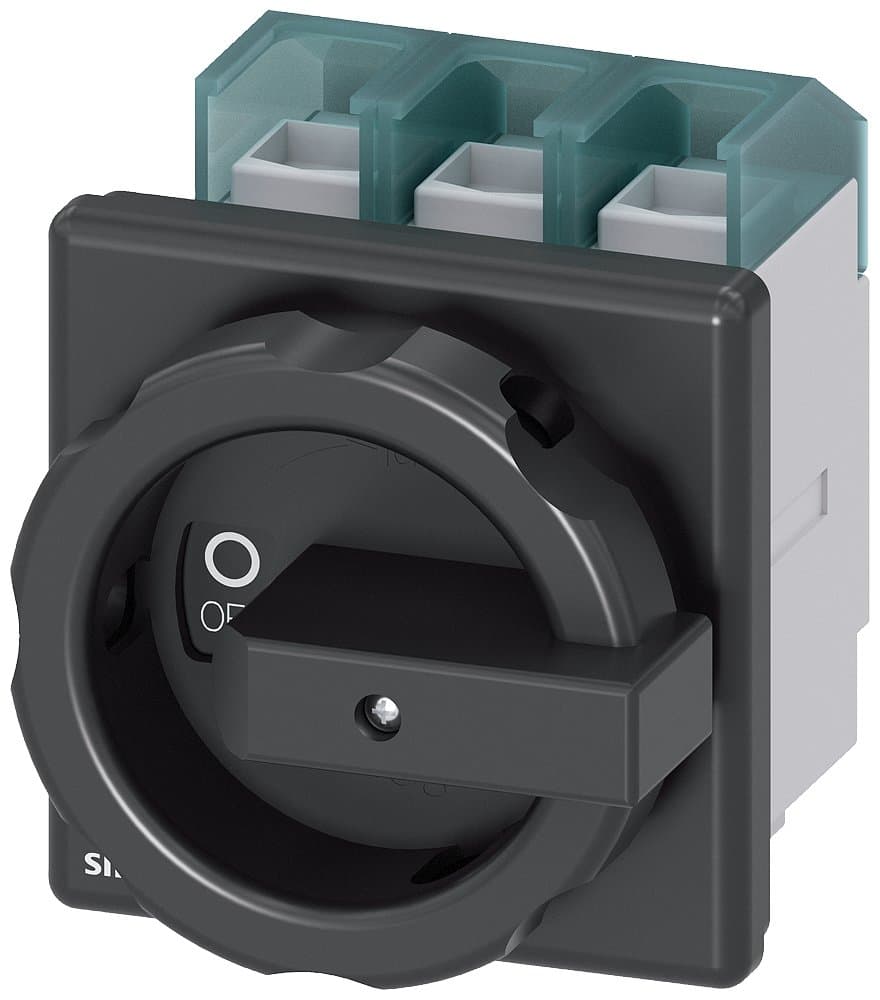

3LD2804-0TK51
Product ID:163611
Updated: 2026/7/3
Key Features
- 1Handle up to 125A current for reliable power distribution.
- 2Install easily with compact 106x90x112.5 mm dimensions.
- 3Operate conveniently via the front-mounted rotary mechanism.
- 4Protect against dust and water with a robust IP65 enclosure.
- 5Manage high-power loads up to 45kW at 400V AC-23.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 125A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole installation on cabinet door, AC-3/37KW; AC-23A/45KW | Installation Type: | Flush-mounted cabinet door with four-hole installation |
| Other: | AC-3/37KW; AC-23A/45KW | Number of Poles: | 3P |
| In(A): | 125 | Specification: | 3LD28【125A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2804-0TK51 |
Specifications may be subject to change without notice
