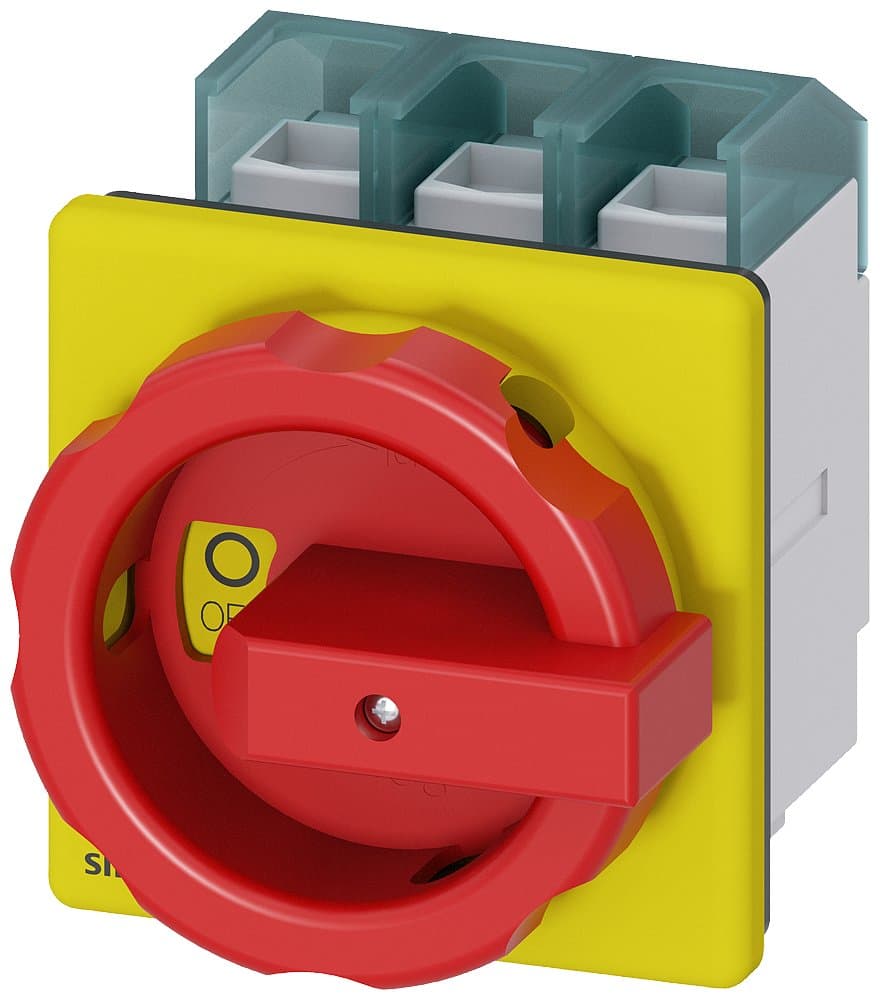

3LD2804-0TK53
Product ID:207336
Updated: 2026/7/2
Key Features
- 1Handle up to 125A current for reliable emergency power cutoff.
- 2Operate with a 690V AC rating for versatile industrial applications.
- 3Install easily using the pre-mounted, front-mounted design.
- 4Ensure safety with the 3-pole emergency stop switch disconnector.
- 5Manage power efficiently with a 45kW rating at 400V.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 125A, 3P, with rotary operating mechanism, red/yellow handle, panel mounted, four-hole mounting on panel door, AC-3/37KW; AC-23A/45KW | Mounting Type | Panel door mounting with four-hole fixing |
| Other | AC-3/37KW; AC-23A/45KW | Poles | 3P |
| In(A) | 125 | Specification | 3LD28【125A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2804-0TK53 |
Specifications may be subject to change without notice
