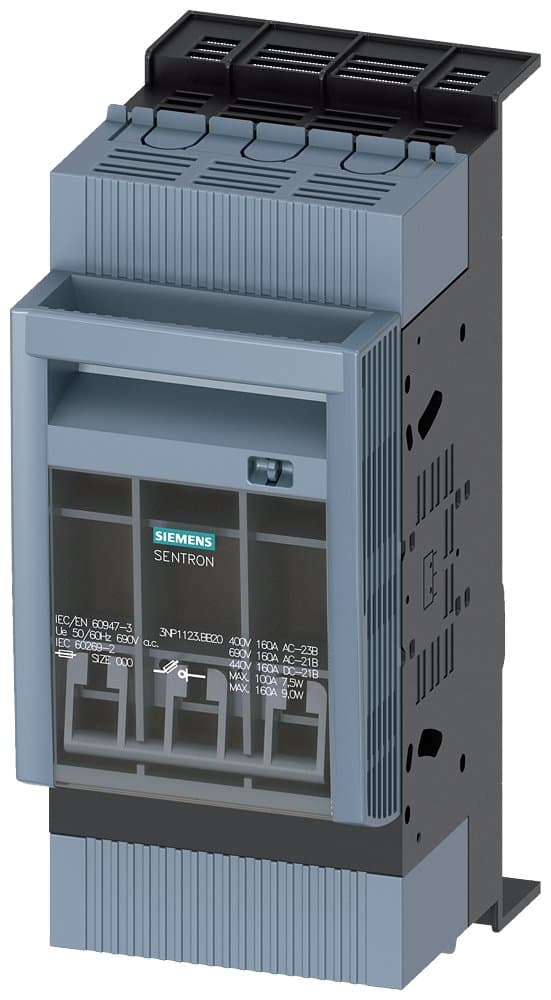

3NP1123-1BB20
Product ID:179769
Updated: 2026/7/3
Key Features
- 1Deliver reliable 160A electrical connections with high performance.
- 2Install compactly in panels using the NH000 fuse size.
- 3Integrate seamlessly with 40mm 8US busbar systems.
- 4Enhance safety via leading auxiliary switch contacts.
- 5Mount directly onto bus bars for easy maintenance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Mounting Type | 40mm Busbar System | Fuse Rating | Size: 000 |
| Terminal Type | Box Terminal | Rated Current In(A) | 160 |
| Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1123-1BB20 |
Specifications may be subject to change without notice
