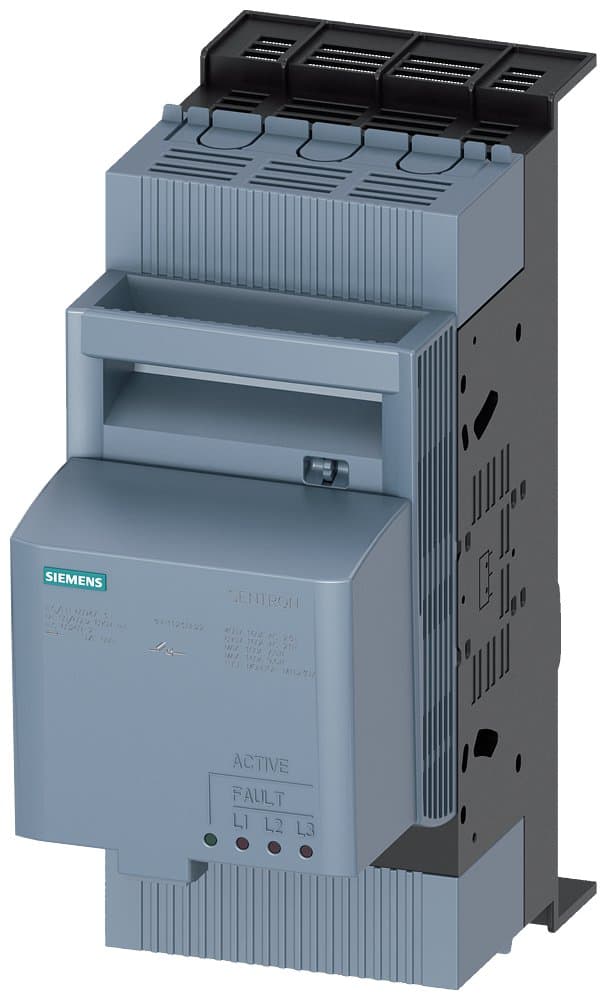

3NP1123-1BB22
Product ID:123227
Updated: 2026/7/2
Key Features
- 1Handle up to 160A current for reliable power distribution.
- 2Utilize a 3-pole configuration for versatile electrical installations.
- 3Integrate seamlessly with NH000 8US busbar systems.
- 4Enhance safety with permanent switch-on and switch-off capabilities.
- 5Ensure durability in demanding environments with robust construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1BB22 |
Specifications may be subject to change without notice
