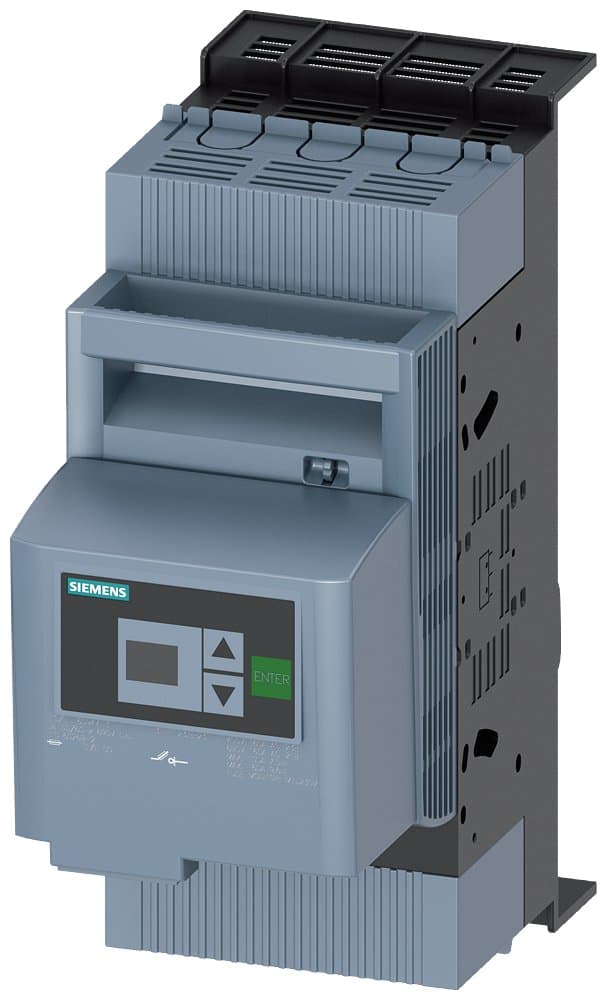

3NP1123-1BB23
Product ID:128321
Updated: 2026/4/4
Key Features
- 1Ensure safe and efficient power distribution in electrical systems. 2、Fit into installations where physical space is limited. 3、Control three-phase power reliably for industrial applications. 4、Support high current requirements up to 160 amperes. 5、Integrate specifically with 8US busbar system designs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
| Fuse Rating | Size:000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 3NP1123-1BB23 |
Specifications may be subject to change without notice
