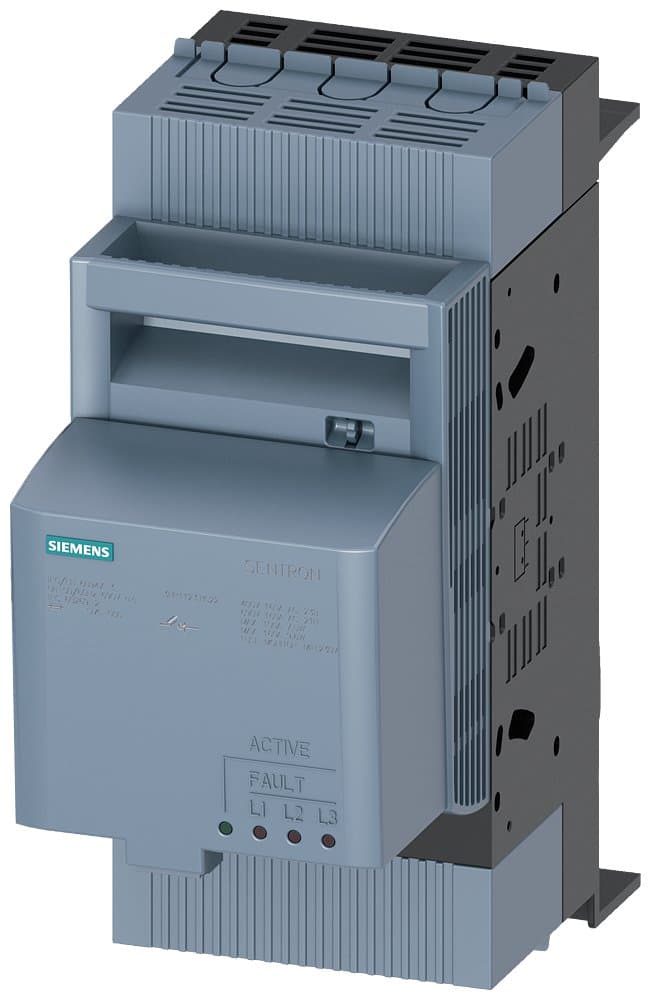

3NP1123-1BC22
Product ID:175480
Updated: 2026/8/22
Key Features
- 1Protect users from electric shock with permanent switch-on and switch-off under load.
- 2Integrate seamlessly into your electrical setup with 8US busbar system compatibility.
- 3Handle demanding applications with a robust 160 A current rating.
- 4Ensure long-lasting performance with durable, reliable construction materials.
- 5Meet IEC 60947-3 and UL 508 standards for maximum safety and operational efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated Current 160A, Size 000, 60mm Busbar System, Box Terminal, 3P, Electronic EFM10 Fuse Monitoring, 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base | Others | 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specification | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1BC22 |
Specifications may be subject to change without notice
