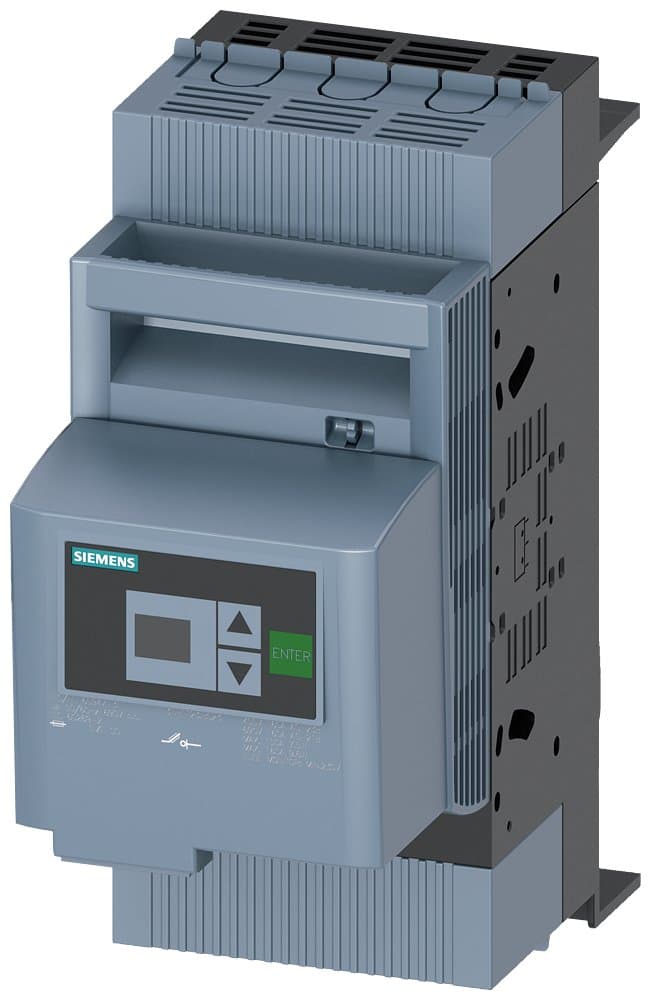

3NP1123-1BC23
Product ID:107957
Updated: 2026/7/2
Key Features
- 1Provide reliable overload and short-circuit protection for industrial plants.
- 2Incorporate reach-round and touch protection for enhanced user safety.
- 3Offer maximum flexibility with a modular design and universal accessories.
- 4Support versatile mounting on floor, rail, or Siemens busbar system.
- 5Enable fast installation with top/bottom cable feeder conversion.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated Current 160A, Size 000, 60mm Busbar System, Box Terminal, 3P, Electronic EFM20 Fuse Monitoring, 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base | Others | 32/70mm Cover with Contact Protection, Suitable for Busbar and Rittal Systems without Base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specification | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1BC23 |
Specifications may be subject to change without notice
