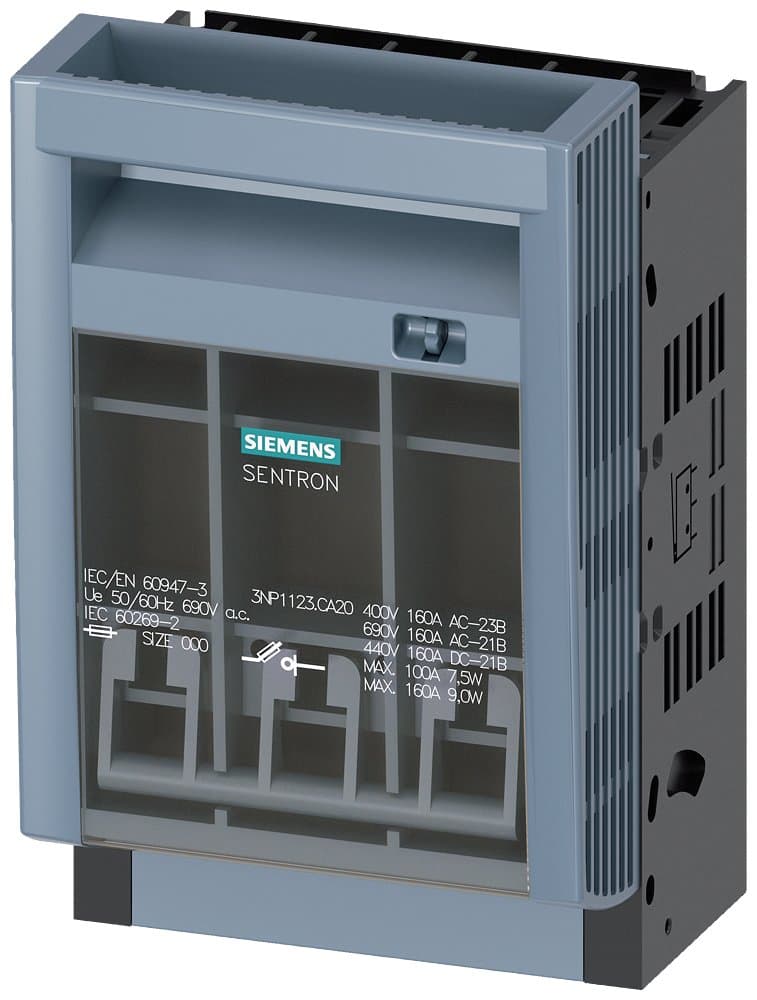

3NP1123-1CA20
Product ID:135649
Updated: 2026/7/3
Key Features
- 1Handle robust power up to 160 A for demanding applications.
- 2Install flexibly with floor, surface, or busbar mounting options.
- 3Ensure safety with LV HRC fuse type and IP20 protection degree.
- 4Operate easily thanks to the cover handle and large inspection window.
- 5Provide reliable overload and short-circuit protection for systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, surface mounting, box terminal, 3P, | Installation Type | Surface Mounting |
| Fuse Specification | Size: 000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1CA20 |
Specifications may be subject to change without notice
