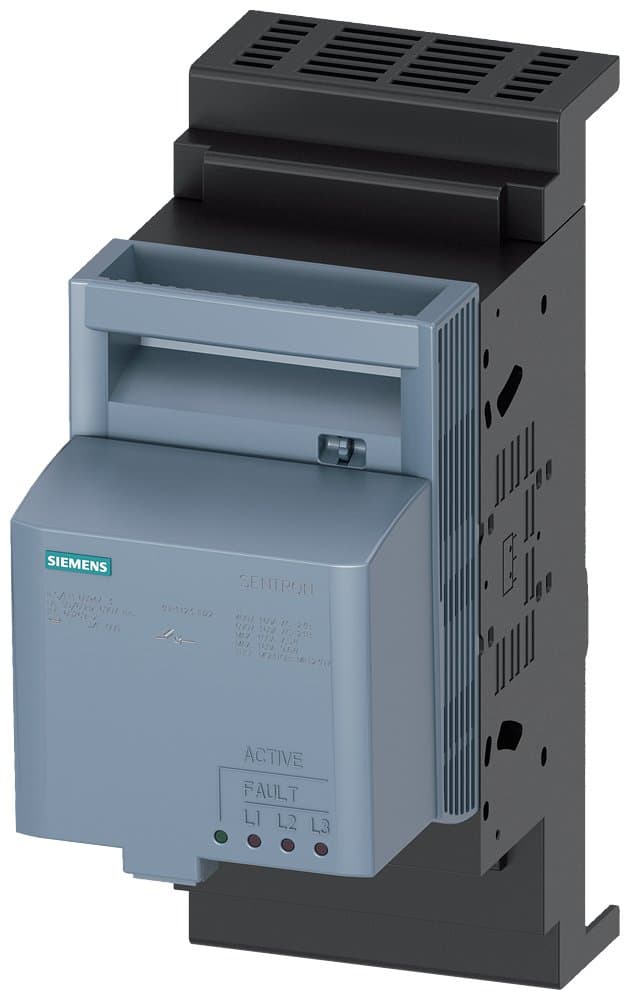

3NP1123-1JB22
Product ID:116131
Updated: 2026/7/2
Key Features
- 1Enhance safety with permanent on/off load switching capabilities.
- 2Handle demanding loads with a high 160A current capacity.
- 3Mount flexibly on floors, rails, or Rittal busbar systems.
- 4Configure the 3NP1123-1JB22 to meet specific application needs.
- 5Ensure reliability with IEC and UL certifications for performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Mounting Type | 40mm Busbar System |
| Fuse Rating | Size:000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1JB22 |
Specifications may be subject to change without notice
