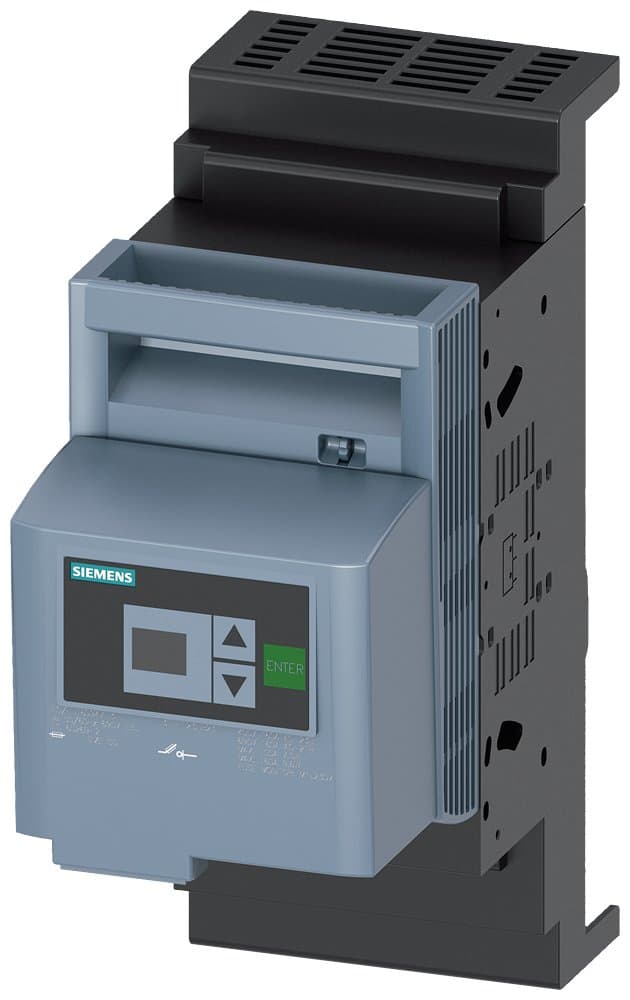

3NP1123-1JB23
Product ID:106880
Updated: 2026/6/7
Key Features
- 1Adopt a modular design for maximum flexibility and easy reconfiguration.
- 2Install on floors or standard mounting rails for versatile placement.
- 3Utilize universal accessories for complete system customization.
- 4Ensure protection with a 3-pole NH000 fuse rated for 160 A.
- 5Integrate seamlessly with Rittal and Siemens 8US busbar systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
| Fuse Rating | Size:000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 3NP1123-1JB23 |
Specifications may be subject to change without notice
