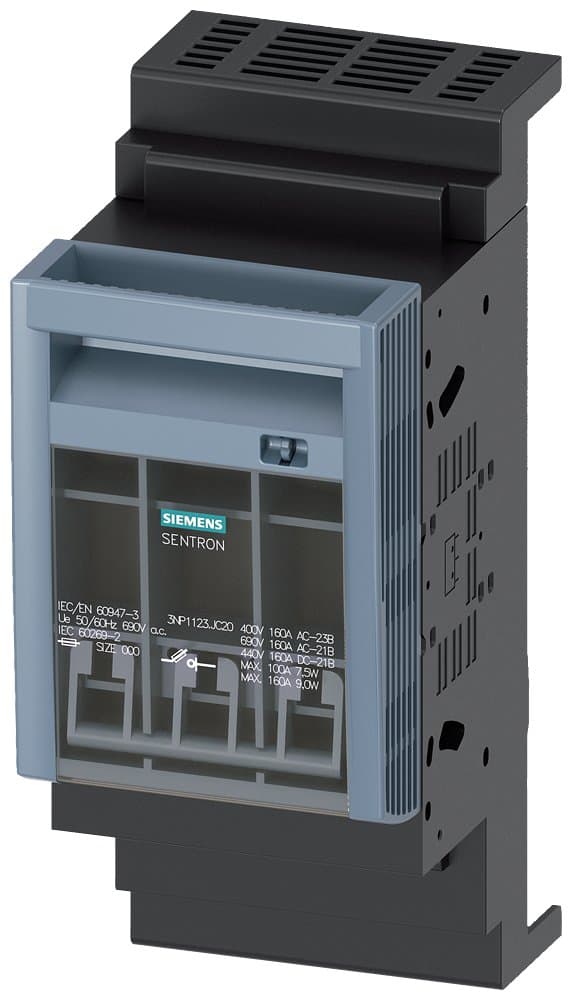

3NP1123-1JC20
Product ID:141360
Updated: 2026/7/3
Key Features
- 1Handle up to 160A for reliable power distribution.
- 2Fit Rittal busbar systems with a 32/70 mm cover level.
- 3Integrate overvoltage and phase failure monitoring.
- 4Accept solid or stranded conductors from 1.5 to 50 mm².
- 5Operate from -25°C to +55°C for robust performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated current 160A, Size 000, 60mm Busbar System, Box Terminal, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
| Installation Type | 60mm Busbar System | Fuse Rating | Size:000 |
| Terminal Type | Box Terminal | Rated Current In(A) | 160 |
| Specifications | 3NP112【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1123-1JC20 |
Specifications may be subject to change without notice
