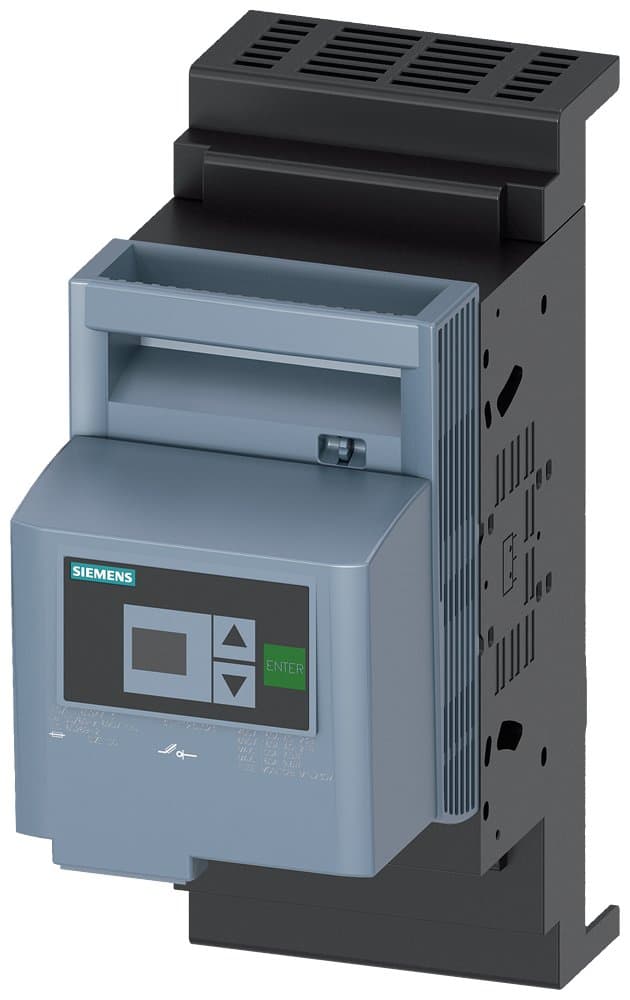

3NP1123-1JC23
Product ID:144177
Updated: 2026/9/5
Key Features
- 1Utilize a modular design for maximum application flexibility.
- 2Install for floor mounting, standard rail, or Siemens busbar systems.
- 3Ensure reliable 160A current rating with 3-pole NH000 fuse protection.
- 4Enhance safety with integrated electronic EFM 20 monitoring.
- 5Integrate seamlessly with compatible Rittal busbar systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 000, 60mm Busway System, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busway System |
| Fuse Rating | Size:000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1123-1JC23 |
Specifications may be subject to change without notice
