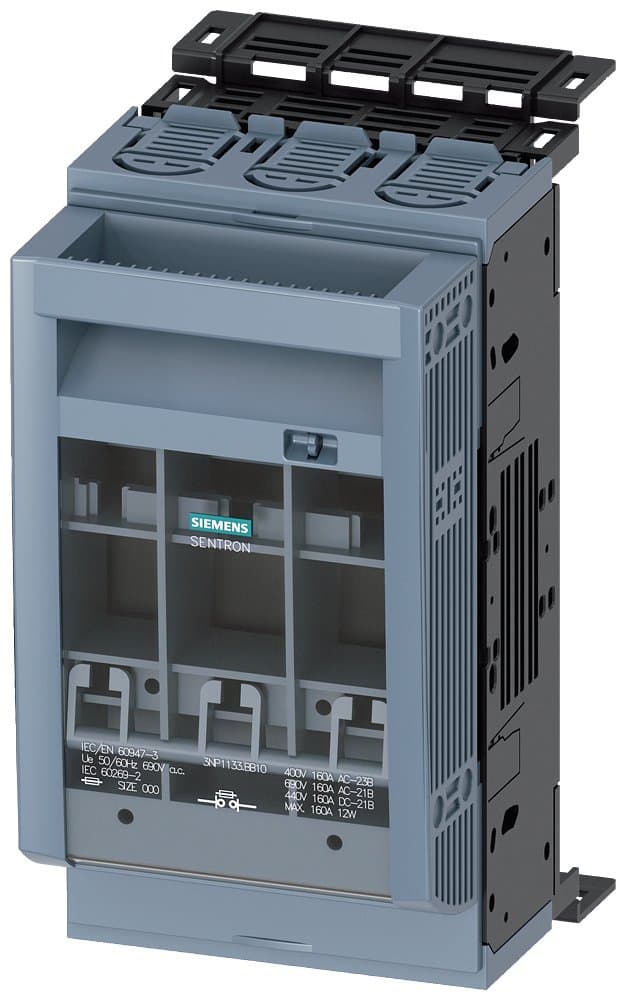

3NP1133-1BB10
Product ID:116054
Updated: 2026/7/2
Key Features
- 1Utilize a versatile 3-pole configuration for broad application flexibility.
- 2Handle high-capacity loads reliably with a 160A maximum current rating.
- 3Integrate seamlessly into busbar systems designed for 40 mm width.
- 4Simplify installation with convenient flat terminal connections.
- 5Source from Siemens' comprehensive and trusted electrical portfolio.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
| Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others: | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Installation Type: | 40mm Busbar System | Fuse Rating: | Size: 00/000 |
| Terminal Type: | Flat Connection | Rated Current In(A): | 160 |
| Specifications: | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1133-1BB10 |
Specifications may be subject to change without notice
