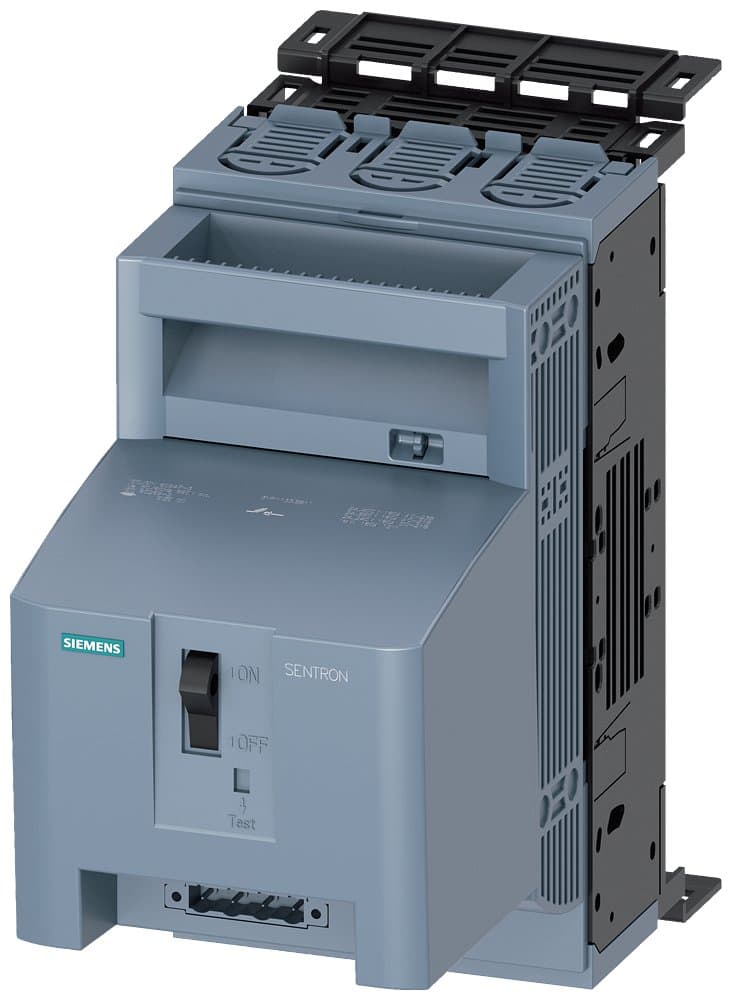

3NP1133-1BB11
Product ID:157105
Updated: 2026/4/5
Key Features
- 1Handle up to 160A for robust power distribution. 2、Switch safely under load to protect against electric shock. 3、Mount on floors, rails, or busbar systems for versatile installation. 4、Ensure long-lasting performance with durable, high-quality materials. 5、Meet IEC 60947-3 and UL standards for guaranteed reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP113【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP1133-1BB11 |
Specifications may be subject to change without notice
