Key Features
- 1Provide reliable overload and short-circuit protection for personnel and plants.
- 2Feature a reach-round and touch protection system to prevent electrical shock.
- 3Suit floor mounting, standard rail, and Siemens busbar system.
- 4Include electronic fuse monitoring with line monitoring for efficiency.
- 5Design with modular structure and universal accessories for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |

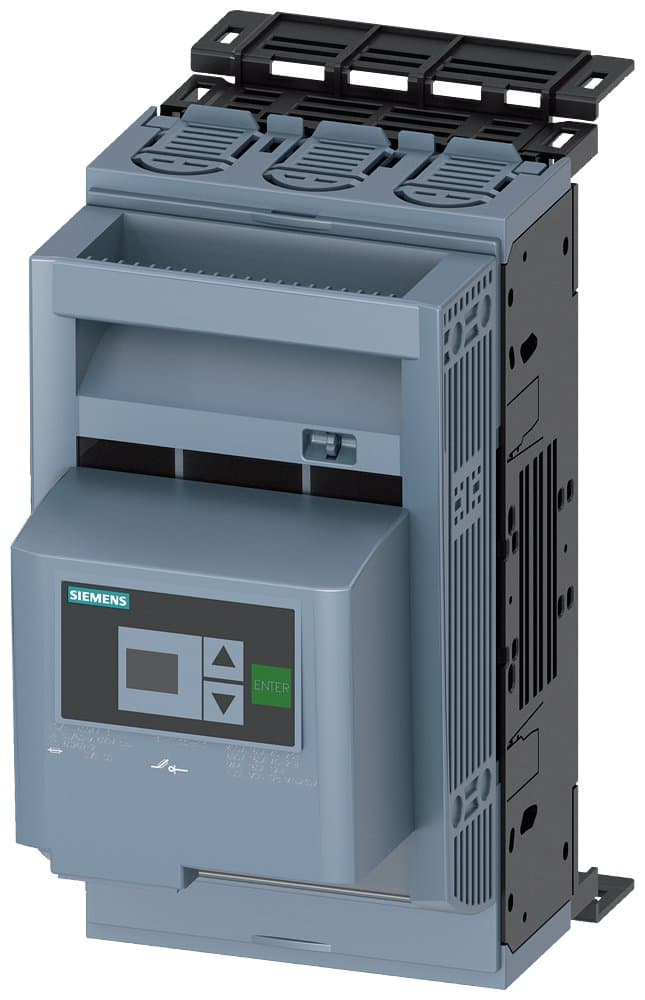

| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specification | 3NP113【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP1133-1BB13 |
Specifications may be subject to change without notice
