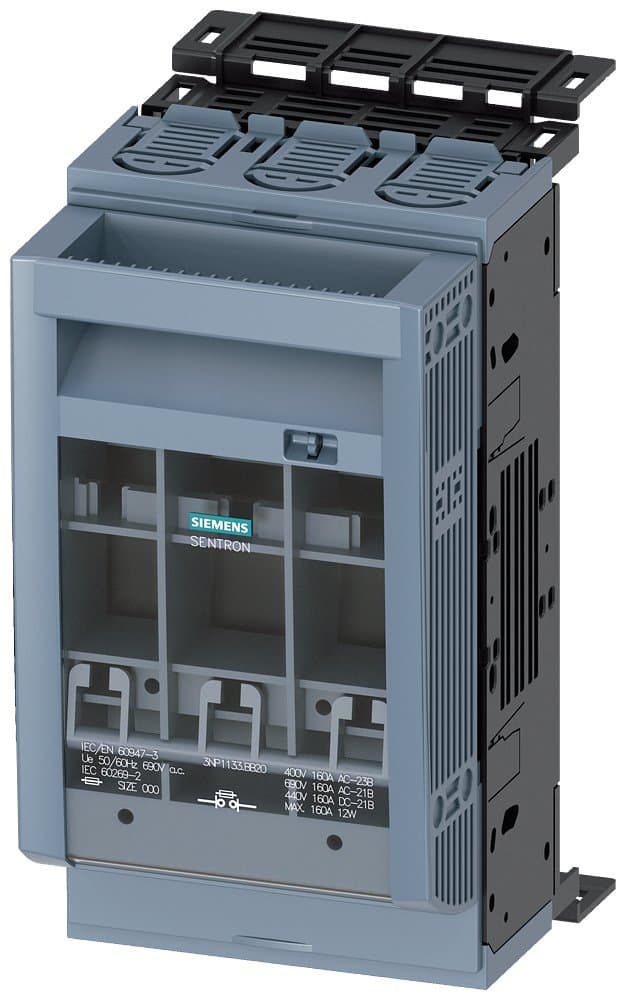

3NP1133-1BB20
Product ID:111401
Updated: 2026/7/2
Key Features
- 1Deliver 160 A capacity for efficient power distribution.
- 2Ensure compatibility with 8US 40 mm busbar systems.
- 3Protect against shock with permanent on/off load switching.
- 4Offer versatile box terminal and 32/70 mm cover mounting.
- 5Withstand harsh environments with durable IP65 construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Mounting Type | 40mm Busbar System | Fuse Rating | Size: 00/000 |
| Terminal Type | Box Terminal | Rated Current In(A) | 160 |
| Specifications | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1133-1BB20 |
Specifications may be subject to change without notice
