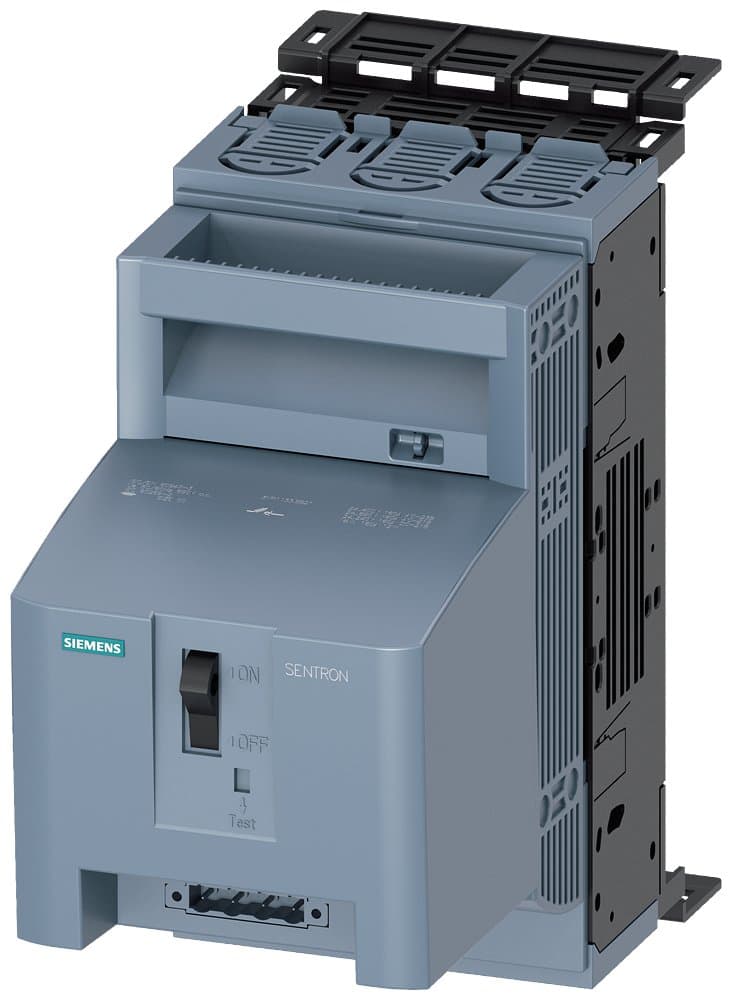

3NP1133-1BB21
Product ID:99207
Updated: 2026/7/2
Key Features
- 1Protect users from electric shock with permanent on/off under load.
- 2Install via floor, rail, or front panel door mounting.
- 3Support rated currents from 16 to 2000 A for various applications.
- 4Meet IEC 60947-3 and UL 508/60947-4-1 safety standards.
- 5Ensure durability with materials built for demanding environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Mounting Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BB21 |
Specifications may be subject to change without notice
