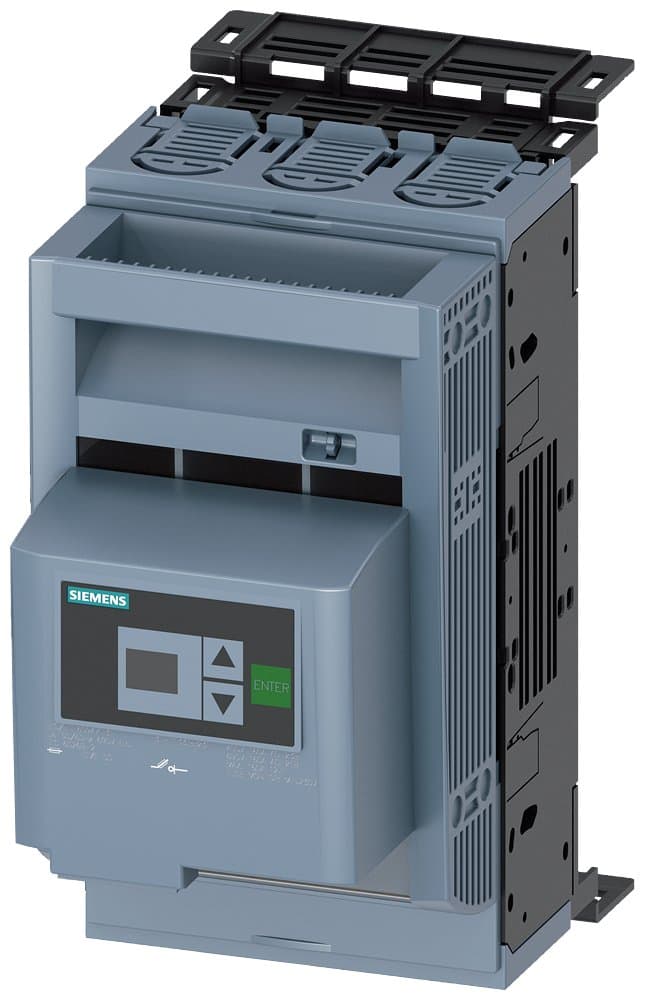

3NP1133-1BB23
Product ID:179892
Updated: 2026/7/3
Key Features
- 1Designed for 8US 40 mm busbar systems.
- 2Ensure real-time fuse monitoring for enhanced safety.
- 3Suit three-phase electrical installations efficiently.
- 4Handle up to 160 A of operational current reliably.
- 5Provide robust protection against environmental factors.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specification | 3NP113【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP1133-1BB23 |
Specifications may be subject to change without notice
