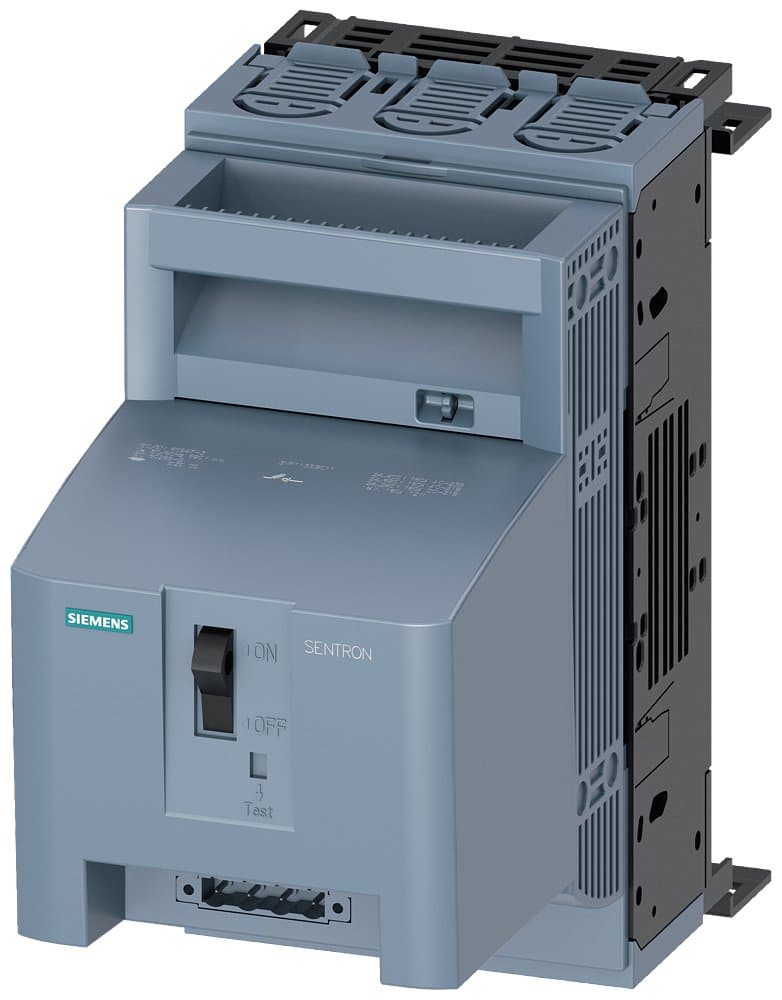

3NP1133-1BC11
Product ID:203670
Updated: 2026/7/3
Key Features
- 1Maximize flexibility with a modular design and universal accessories.
- 2Install easily via floor, rail, or Siemens 8US busbar mounting.
- 3Ensure reliable 160 A power distribution capacity.
- 4Monitor fuses proactively with electromechanical functionality.
- 5Simplify installation in 60 mm systems using flat terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without bases | Other | 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without bases |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP113【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BC11 |
Specifications may be subject to change without notice
