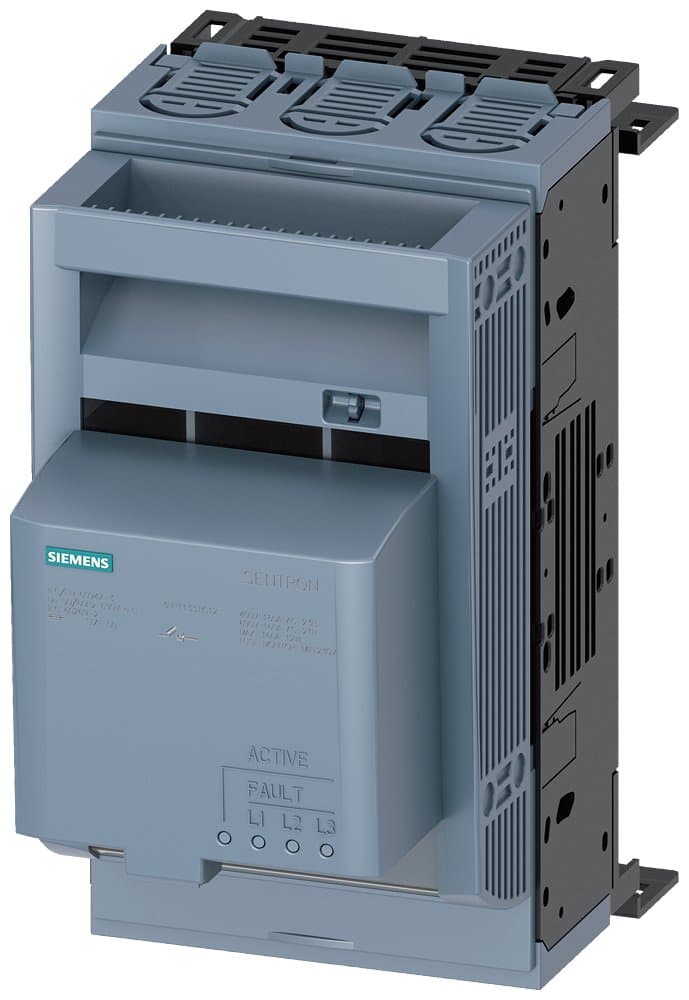

3NP1133-1BC12
Product ID:220832
Updated: 2026/9/16
Key Features
- 1Provide robust overload and short-circuit protection.
- 2Include electronic fuse monitoring for accurate status.
- 3Offer flexible installation on busbar, floor, or rail.
- 4Incorporate reach-round and touch protection for safety.
- 5Feature a large inspection window for easy fuse check.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
| Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others: | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring: | Electronic EFM10 Fuse Monitoring | Installation Type: | 60mm Busbar System |
| Fuse Specification: | Size: 00/000 | Terminal Type: | Flat Connection |
| Rated Current In(A): | 160 | Specification: | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BC12 |
Specifications may be subject to change without notice
