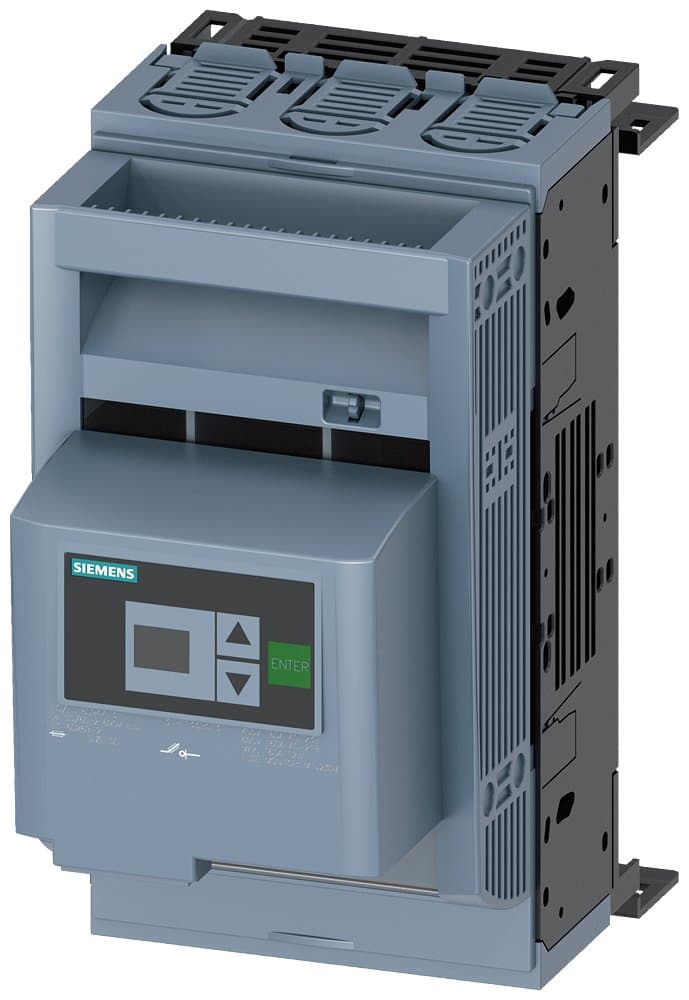

3NP1133-1BC13
Product ID:187764
Updated: 2026/8/8
Key Features
- 1Protect users from electric shock with permanent load switching.
- 2Handle 160 A for diverse industrial applications.
- 3Enhance reliability with electronic fuse monitoring EFM20.
- 4Ensure compatibility with 8US 60 mm busbar flat terminals.
- 5Meet DIN VDE 0100-200 standards for functional safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BC13 |
Specifications may be subject to change without notice
