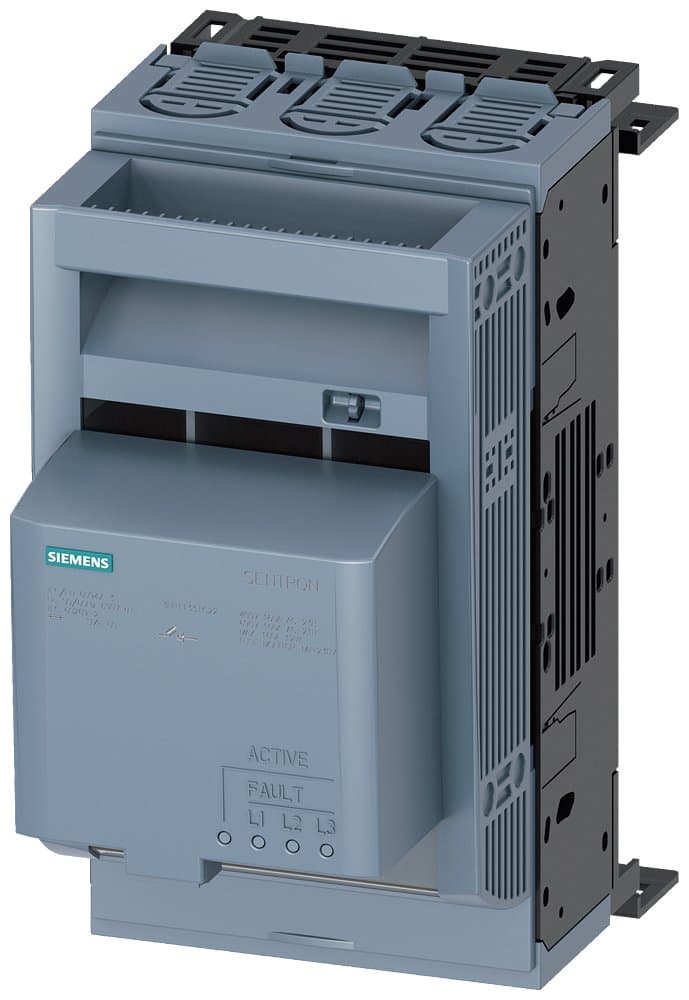

3NP1133-1BC22
Product ID:222682
Updated: 2026/8/29
Key Features
- 1Provide comprehensive electrical control for three-pole applications.
- 2Handle up to 160A for various demanding installations.
- 3Ensure seamless integration with 8US 60 busbar systems.
- 4Feature NH00 fuse size for reliable and safe operation.
- 5Adhere to high-quality standards with Czech Republic manufacturing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BC22 |
Specifications may be subject to change without notice
