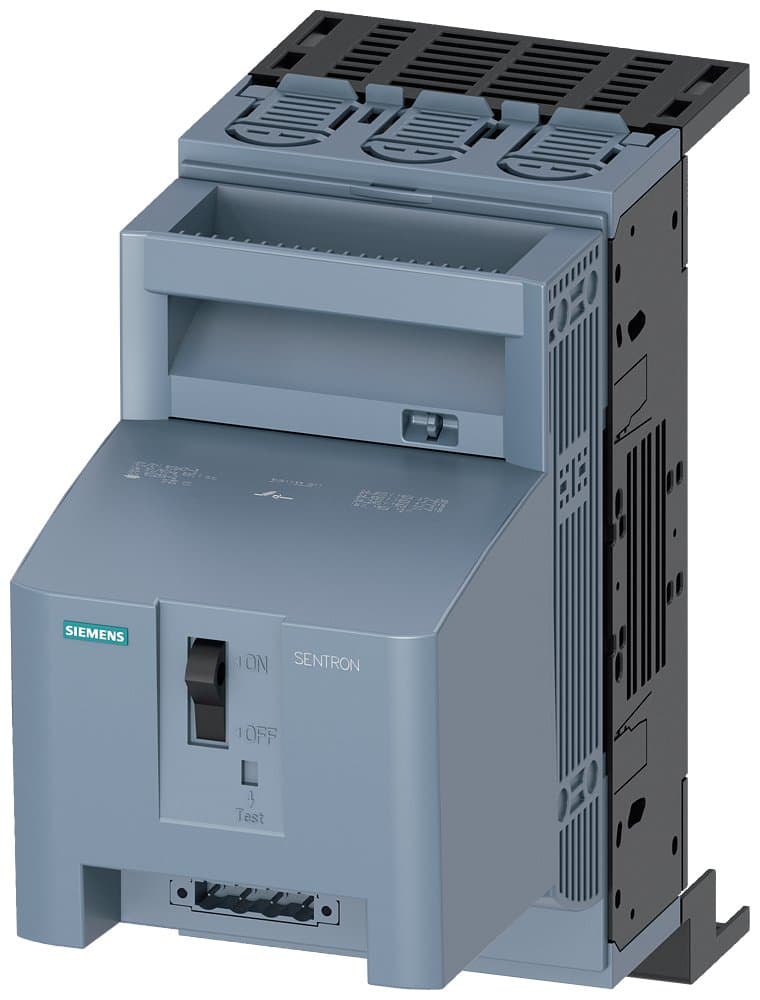

3NP1133-1JB11
Product ID:218491
Updated: 2026/4/3
Key Features
- 1Protect users from electric shock risks. 2、Prevent short circuits and overloads to safeguard equipment. 3、Customize fitment via Siemens configurators for precise integration. 4、Support a wide current range from 16 to 250 A. 5、Ensure durability with robust materials for demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electromechanical fuse monitoring, suitable for Rittal systems with base | Others | Suitable for Rittal systems with base |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP113【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1JB11 |
Specifications may be subject to change without notice
