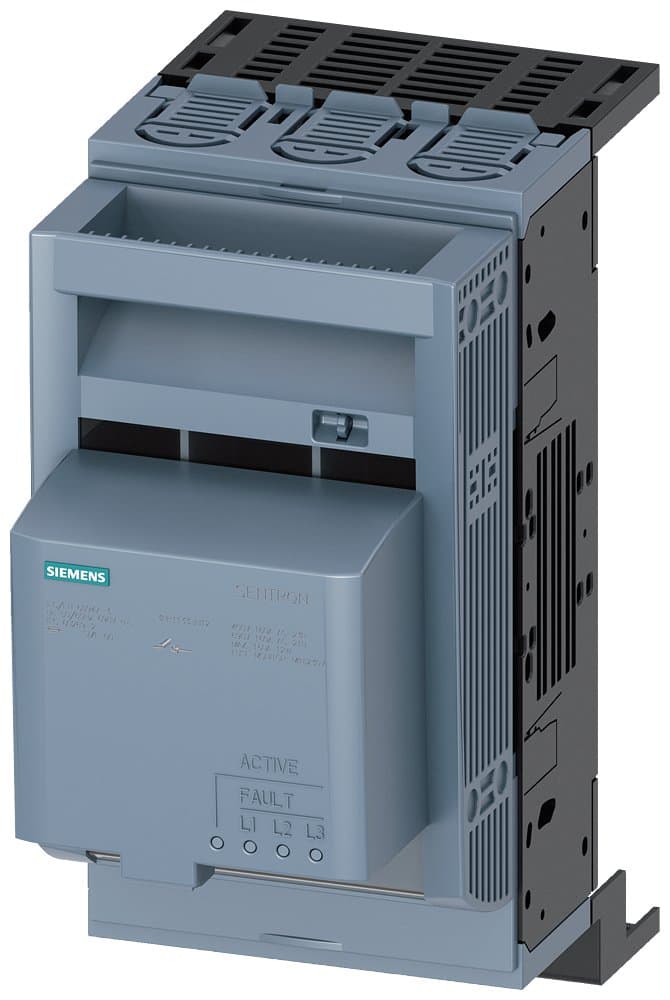

3NP1133-1JB12
Product ID:182166
Updated: 2026/8/15
Key Features
- 1Protect users from electric shock with permanent load switching.
- 2Customize via Siemens configurator for specific application needs.
- 3Install flexibly with floor or standard rail mounting options.
- 4Handle rated currents from 16 to 2000 A for versatile use.
- 5Meet IEC 60947-3 and UL 508 standards for reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated current 160A, Size 00/000, 40mm Busbar System, Flat Connection, 3P, Electronic EFM10 Fuse Monitoring, Suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 3NP1133-1JB12 |
Specifications may be subject to change without notice
