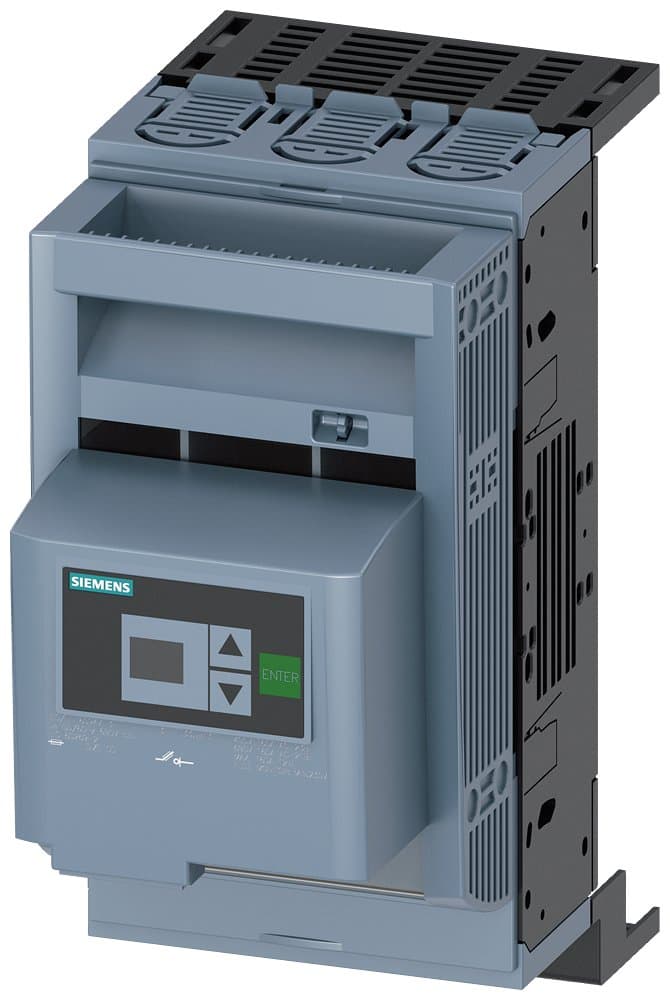

3NP1133-1JB13
Product ID:126520
Updated: 2026/4/5
Key Features
- 1Ensure reliable operation in low-voltage power distribution systems. 2、Protect against electric shock with permanent on/off load switching. 3、Install flexibly via floor, rail, or panel door front mounting. 4、Support loads up to 160A for diverse electrical installations. 5、Comply with IEC 60947-3 and UL 508 safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 3NP1133-1JB13 |
Specifications may be subject to change without notice
