Key Features
- 1Protect circuits with a 3-pole, NH00 model rated for 160A.
- 2Integrate seamlessly into Rittal 40 mm busbar systems.
- 3Ensure secure connections using robust box terminals.
- 4Save panel space with compact dimensions: 0.126m H x 0.24m W.
- 5Benefit from free delivery and fast shipping options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |

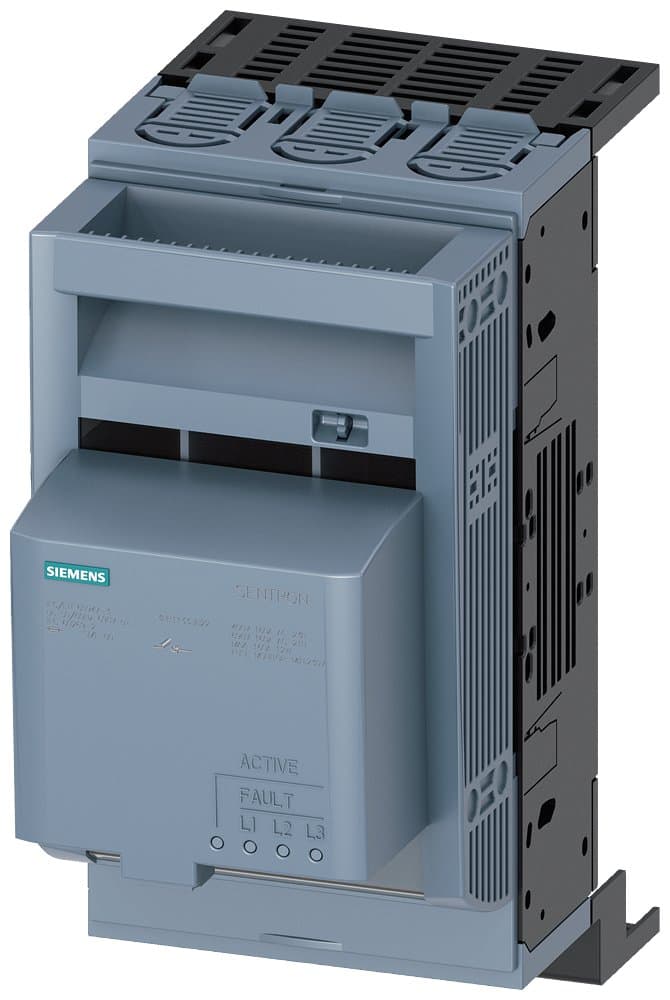

| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP1133-1JB22 |
Specifications may be subject to change without notice
