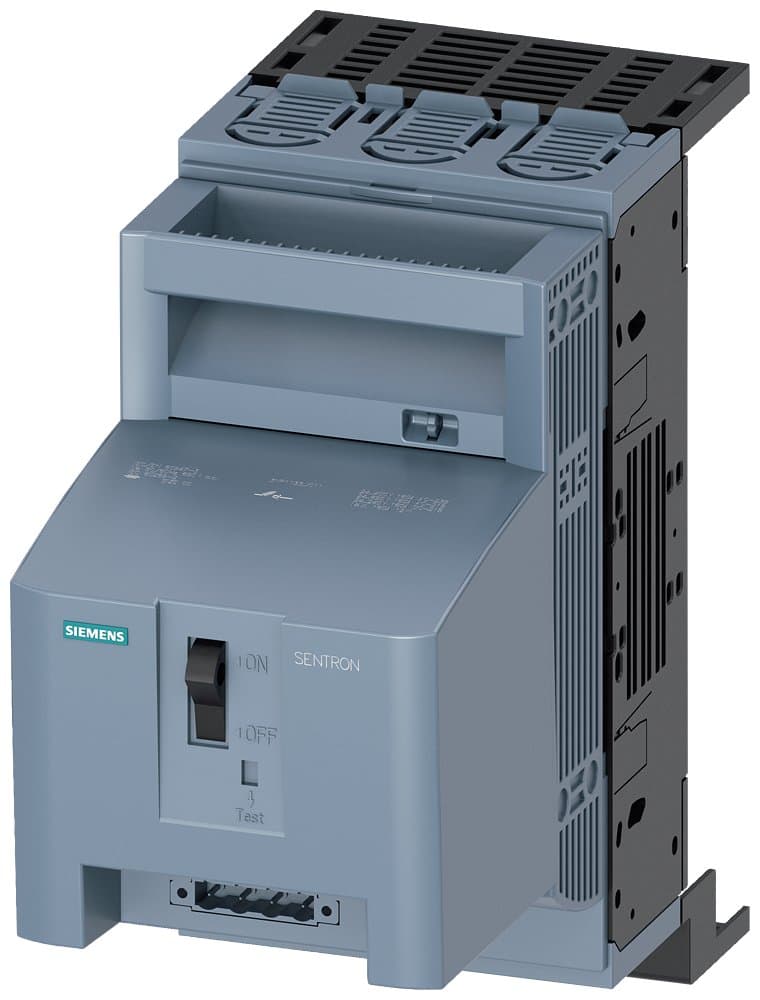

3NP1133-1JC11
Product ID:112410
Updated: 2026/4/3
Key Features
- 1Monitor fuses continuously to ensure safe and reliable operation. 2、Protect against surges with 8 kV rated voltage resistance. 3、Integrate seamlessly into Rittal busbar systems with flat terminals. 4、Handle operational currents up to 160 A across various voltages. 5、Withstand 2,000 mechanical cycles for extended service life.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated current 160A, Size 00/000, 60mm Busbar System, Flat Connection, 3P, Electromechanical Fuse Monitoring, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1JC11 |
Specifications may be subject to change without notice
