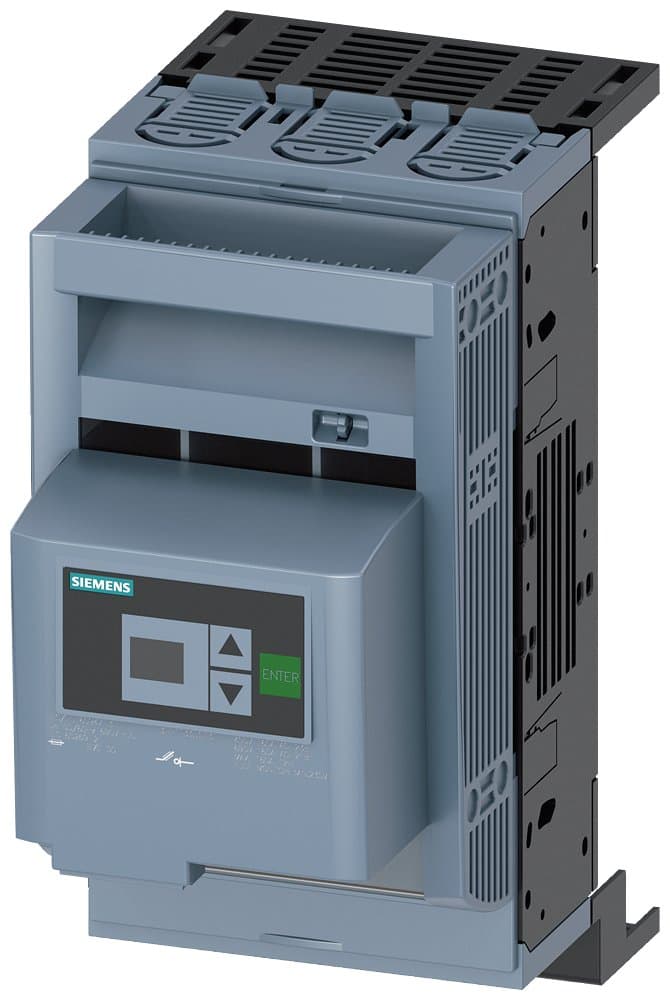

3NP1133-1JC13
Product ID:130855
Updated: 2026/7/10
Key Features
- 1Protect users from electric shock with permanent switch-on/off under load.
- 2Ensure system integrity with up to 33 kA breaking capacity per AC category.
- 3Simplify installation via floor, rail, or front mounting options.
- 4Gain operational flexibility with manual or remote control capability.
- 5Meet global safety standards including IEC 60947-3 and UL 508.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1JC13 |
Specifications may be subject to change without notice
