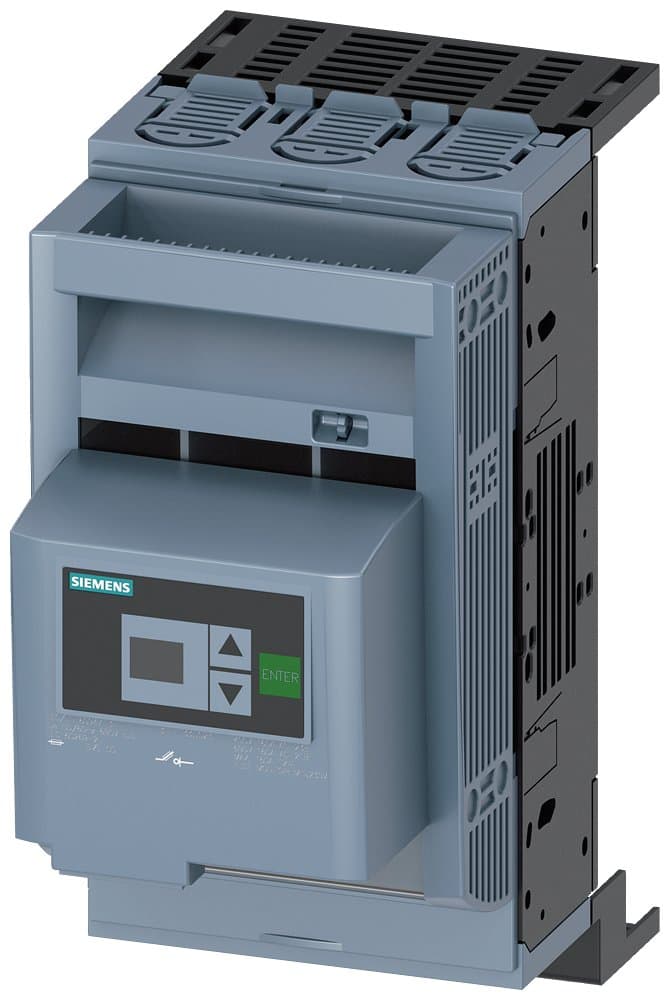

3NP1133-1JC23
Product ID:152069
Updated: 2026/7/3
Key Features
- 1Configure for three-phase applications with a 3-pole design.
- 2Handle up to 160 amps for reliable power distribution.
- 3Integrate seamlessly with Rittal busbar systems.
- 4Install easily using box terminal (NH00) connections.
- 5Enhance safety with electronic monitoring (EFM 20).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1JC23 |
Specifications may be subject to change without notice
