Key Features
- 1Handle up to 250 A for reliable power distribution.
- 2Monitor and protect circuits with electronic EFM10 technology.
- 3Fit efficiently into 60 mm busbar systems to save space.
- 4Enhance safety with a robust 32/70 mm cover level.
- 5Connect easily using flat terminals and versatile mounts.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Mounting Type | 60mm Busbar System |
| Fuse Rating | Size: 0/1 | Terminal Type | Flat Connection |
| Rated Current In(A) | 250 | Specifications | 3NP114【250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |

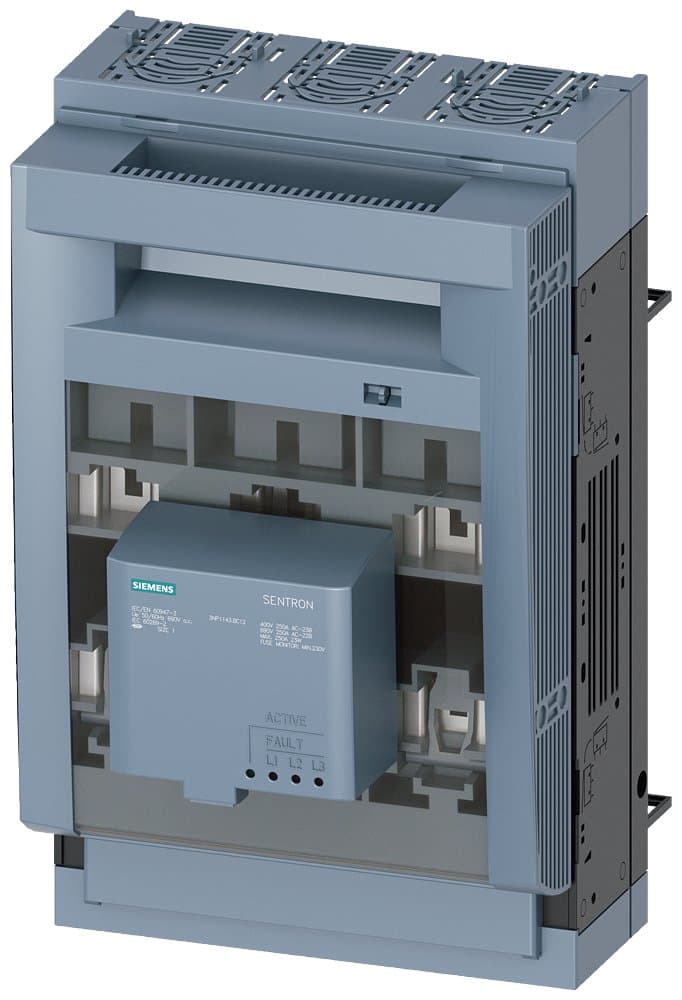

| Model Number | 3NP1143-1BC12 |
Specifications may be subject to change without notice
