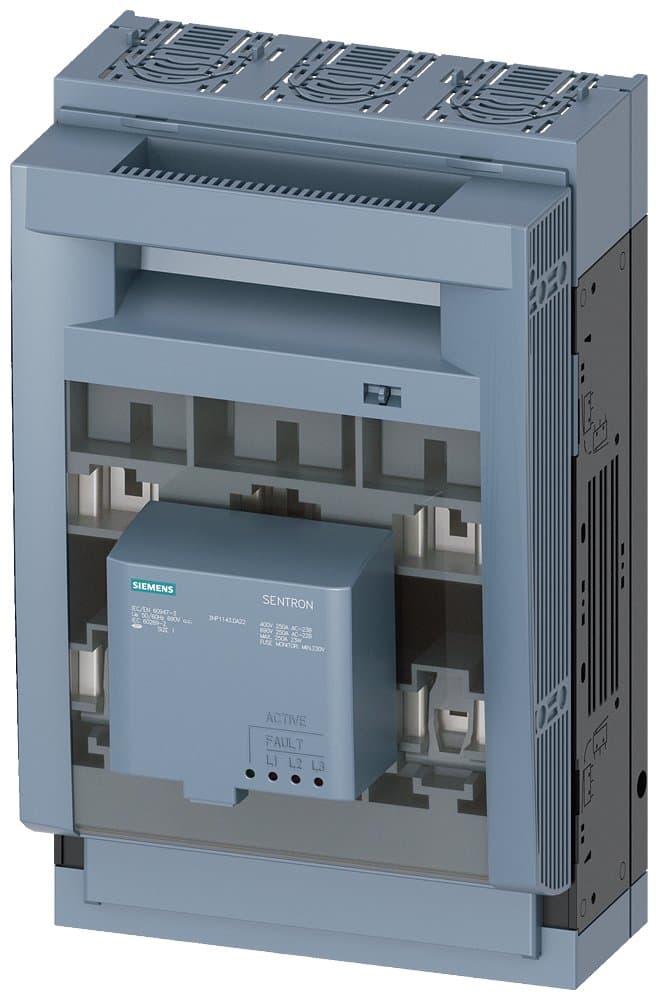

3NP1143-1DA22
Product ID:100915
Updated: 2026/4/3
Key Features
- 1Ensure high-performance electrical safety with electronic EFM10 monitoring. 2、Install easily using the compact 306x183.7x116 mm design. 3、Mount flexibly on plates or box terminals. 4、Withstand robust 80 kA short circuit currents. 5、Protect against dust and water per IP20/IP30/IP40 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 250A, Size 0/1, surface mounting, box terminal, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring | Electronic EFM10 Fuse Monitoring |
| Mounting Type | Surface Mounting | Fuse Rating | Size: 0/1 |
| Terminal Type | Box Terminal | Rated Current In(A) | 250 |
| Specifications | 3NP114【250A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1143-1DA22 |
Specifications may be subject to change without notice
