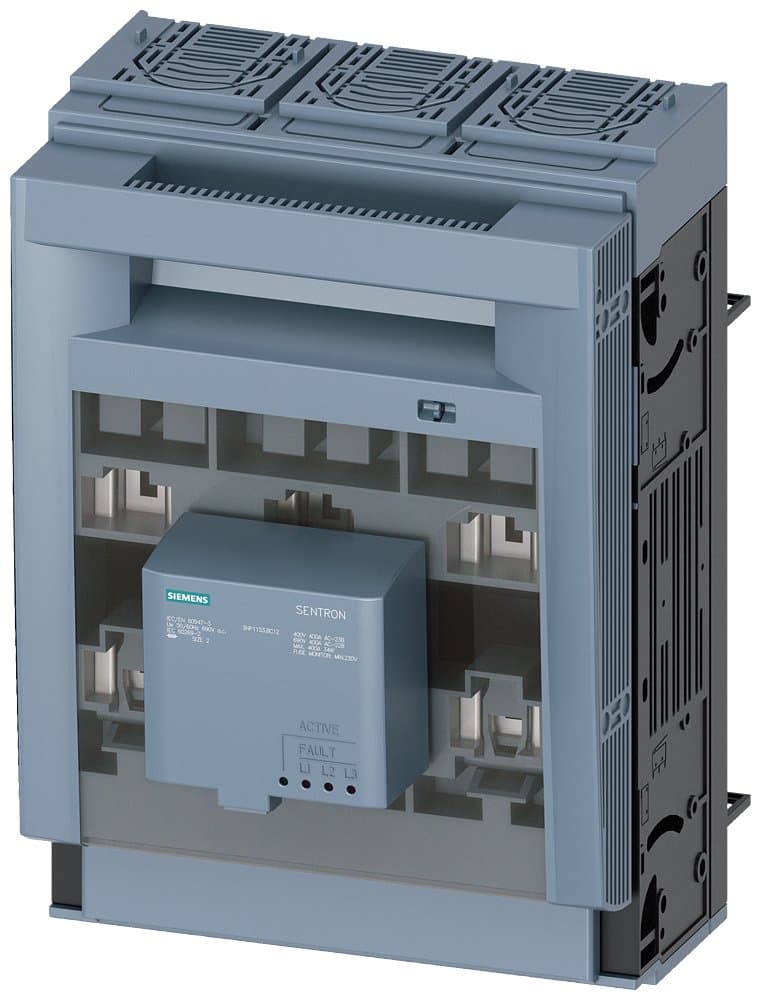

3NP1153-1BC12
Product ID:197008
Updated: 2026/4/4
Key Features
- 1Deliver reliable 400A power distribution for high-current applications. 2、Install easily in space-limited panels with a compact design. 3、Monitor fuse status in real-time using electronic EFM10 technology. 4、Mount flexibly on 60 mm busbar systems or directly on the floor. 5、Enhance safety with permanent switch-on and switch-off capabilities.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 400A, Size 1/2, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 1/2 | Terminal Type | Flat Connection |
| Rated Current In(A) | 400 | Specification | 3NP115【400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1153-1BC12 |
Specifications may be subject to change without notice
