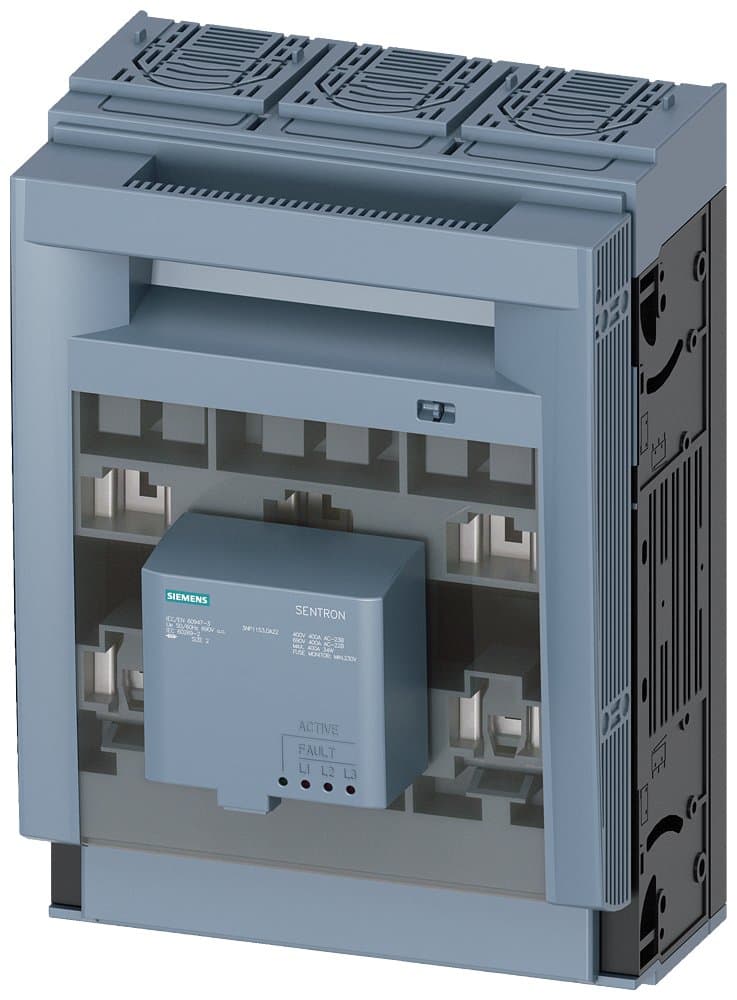

3NP1153-1DA22
Product ID:219729
Updated: 2026/4/3
Key Features
- 1Protect against electric shock with permanent on/off load switching. 2、Optimize efficiency in low-voltage power distribution applications. 3、Mount flexibly on floor, rail, or front panels. 4、Handle demanding loads with a 400 A current rating. 5、Ensure compliance with IEC 60947-3 and UL 508 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
| Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
| Description | 3NP1, rated current 400A, Size 1/2, surface mounting, box terminal, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring: | Electronic EFM10 Fuse Monitoring |
| Mounting Type: | Surface Mounting | Fuse Rating: | Size: 1/2 |
| Terminal Type: | Box Terminal | Rated Current In(A): | 400 |
| Specifications: | 3NP115【400A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1153-1DA22 |
Specifications may be subject to change without notice
