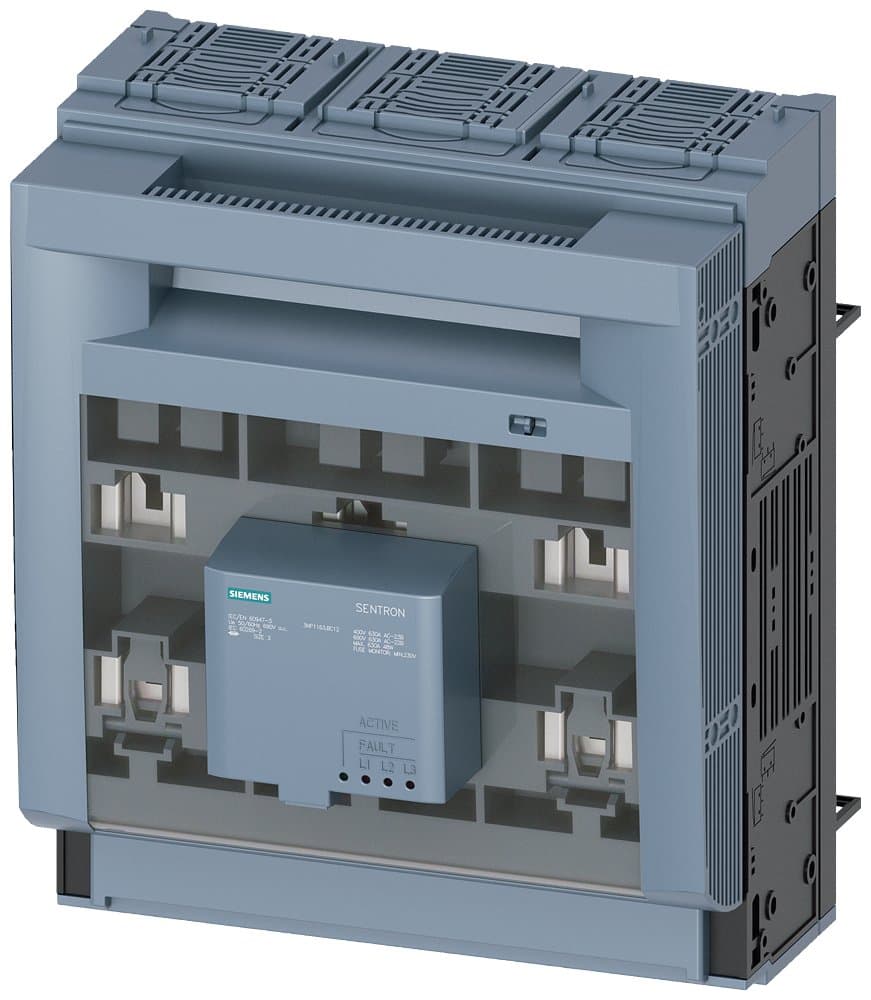

3NP1163-1BC12
Product ID:128817
Updated: 2026/7/7
Key Features
- 1Deliver 630A reliable power distribution for robust performance.
- 2Monitor fuses electronically in real-time with EFM10 technology.
- 3Integrate compactly into busbar systems using flat terminals.
- 4Prevent electric shock and short circuits with advanced switching.
- 5Mount flexibly on floors or 40/60 mm busbar systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 630A, Size 2/3, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 2/3 | Terminal Type | Flat Connection |
| Rated Current In(A) | 630 | Specification | 3NP116【630】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1163-1BC12 |
Specifications may be subject to change without notice
