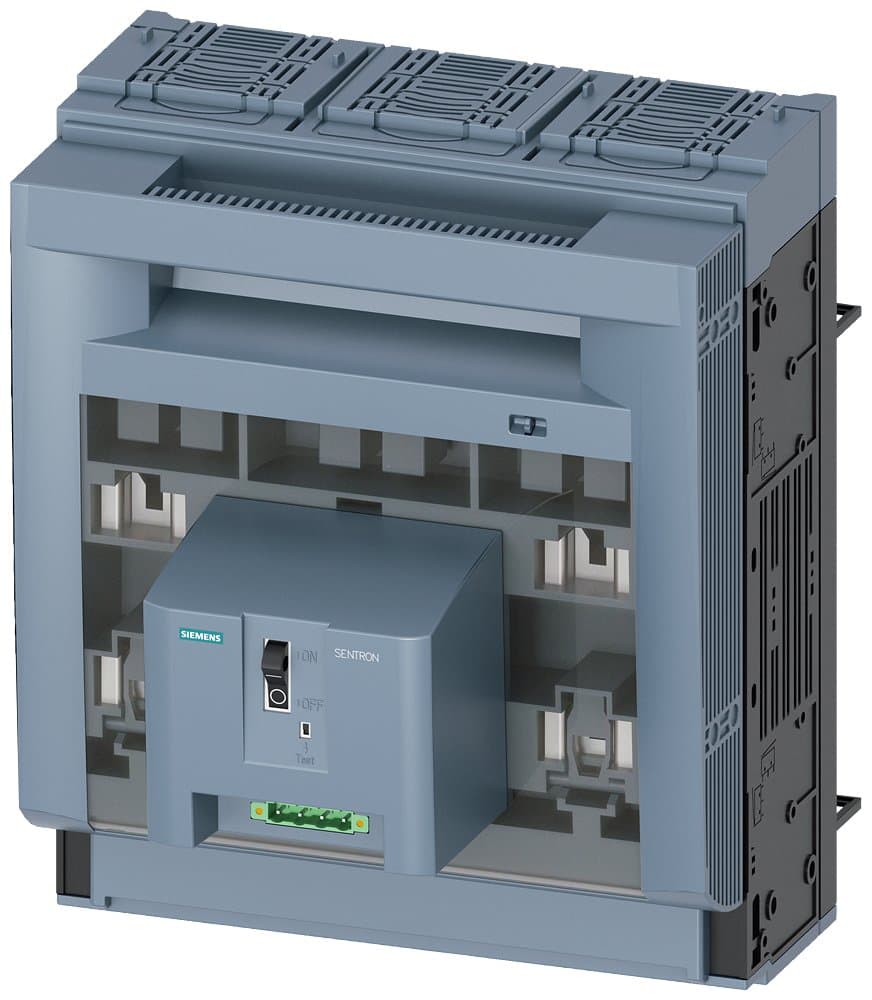

3NP1163-1BC21
Product ID:164516
Updated: 2026/7/3
Key Features
- 1Handle continuous currents up to 630 A.
- 2Ensure reliable fuse monitoring for enhanced safety.
- 3Meet the needs of 60 mm 8US busbar systems.
- 4Withstand up to 1,000 mechanical switching cycles.
- 5Comply with DIN EN 61346-2 and IEC 60947-3 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 630A, Size 2/3, 60mm busbar system, box terminal, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base |
| Fuse Monitoring | Electromechanical Fuse Monitoring | Mounting Type | 60mm Busbar System |
| Fuse Rating | Size: 2/3 | Terminal Type | Box Terminal |
| Rated Current In(A) | 630 | Specifications | 3NP116【630】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1163-1BC21 |
Specifications may be subject to change without notice
