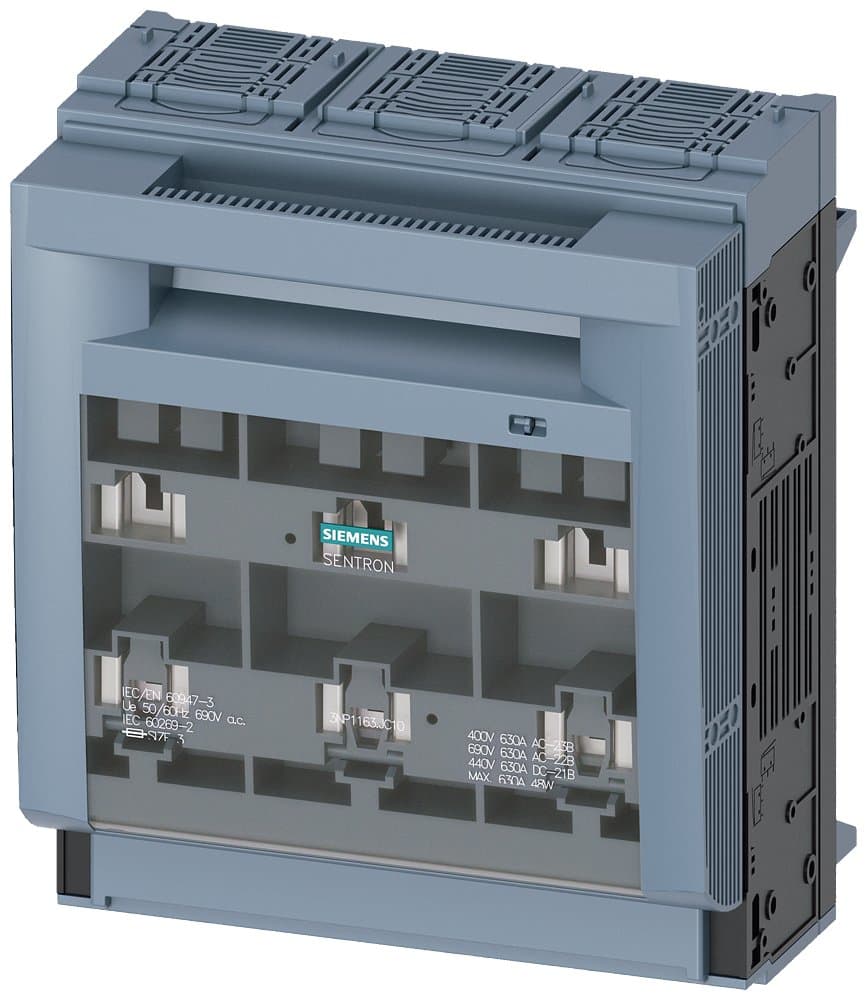

3NP1163-1JC10
Product ID:193895
Updated: 2026/7/3
Key Features
- 1Handle 630A for robust electrical applications.
- 2Install on floor, rail, or Rittal busbar systems.
- 3Meet DIN VDE 0100-200 and IEC 60947-3 safety standards.
- 4Switch all poles individually for flexible operation.
- 5Withstand frequent load switching and prevent shock.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated current 630A, Size 2/3, 60mm Busbar System, Flat Connection, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
| Installation Type | 60mm Busbar System | Fuse Rating | Size: 2/3 |
| Terminal Type | Flat Connection | Rated Current In(A) | 630 |
| Specifications | 3NP116【630】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1163-1JC10 |
Specifications may be subject to change without notice
