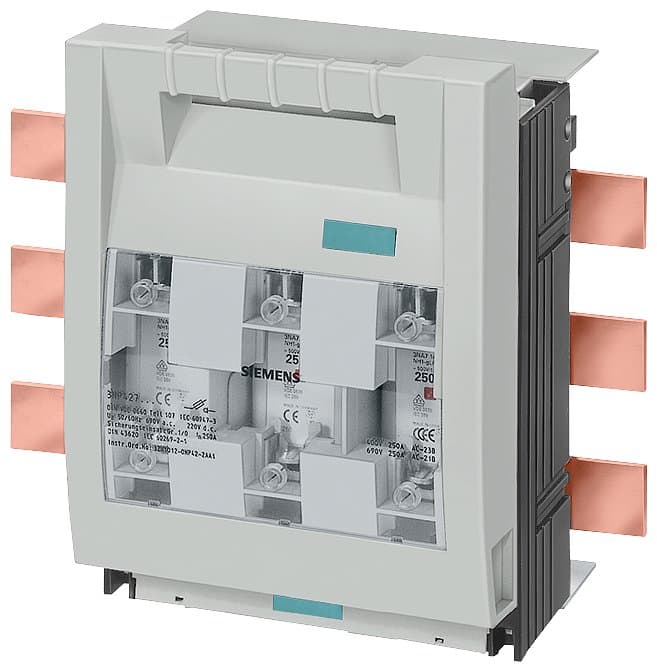

3NP5065-1CG00
Product ID:192928
Updated: 2026/7/3
Key Features
- 1Enable high-speed closing for rapid disconnection.
- 2Provide reliable 3-pole circuit protection.
- 3Handle heavy-duty applications up to 160A.
- 4Ensure compatibility with 8US 40mm busbar systems.
- 5Secure connections with robust clamp terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 690 | Description | 3NP5, rated current 160A, Size 00/000, 40mm busbar system clamp 3P busbar width 12mm, thickness 5mm/10mm, |
| Mounting Type: | 40mm busbar system | Fuse Rating: | Size:00/000 |
| Terminal Type: | Clamp | Other: | Busbar width 12mm, thickness 5mm/10mm, |
| Number of Poles: | 3P | In(A): | 160 |
| Specification: | 3NP50【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3NP5065-1CG00 |
Specifications may be subject to change without notice
