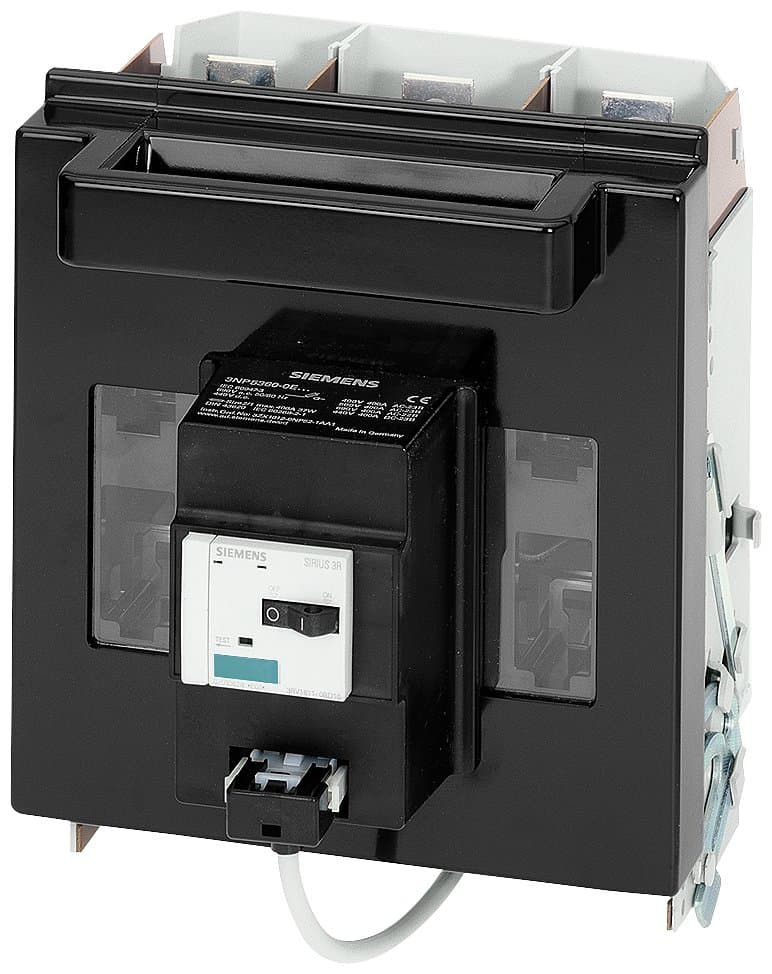

3NP5360-0EA86
Product ID:103767
Updated: 2026/4/3
Key Features
- 1Enable high-speed closing for enhanced operational efficiency. 2、Ensure secure connections with robust screw terminals. 3、Monitor fuses reliably via the integrated 3RV system. 4、Simplify assembly and installation on standard mounting plates. 5、Support 3-pole, NH2, 400 A applications effectively.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 690 | Description | 3NP5, rated current 400A, Size 1/2, surface mount flat connection 3PSIRUS circuit breaker electromechanical fuse monitoring with high-speed closing function, switch / 1NO+1NC, breaker / 1NO+1NC, |
| Fuse Monitoring: | SIRUS circuit breaker electromechanical fuse monitoring | Mounting Type: | Surface mount |
| Fuse Rating: | Size: 1/2 | Terminal Type: | Flat connection |
| Others: | With high-speed closing function, switch / 1NO+1NC breaker / 1NO+1NC | Poles: | 3P |
| In(A): | 400 | Specifications | 3NP53【400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP5360-0EA86 |
Specifications may be subject to change without notice
