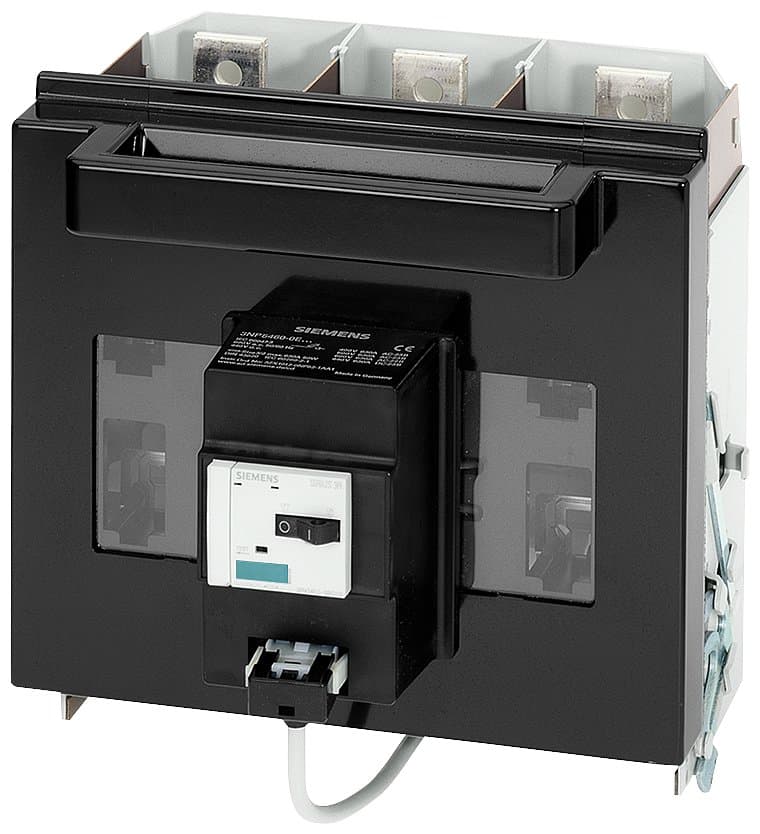

3NP5460-0EA86
Product ID:112386
Updated: 2026/4/3
Key Features
- 1Ensure quick and reliable operation with high-speed closing functionality. 2、Support heavy-duty applications with a 630A max current rating. 3、Provide comprehensive circuit protection via 3-pole design and NH3 fuse-link. 4、Facilitate easy installation with floor mounting and screw terminals. 5、Enable convenient manual control using the cover handle operator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 690 | Description | 3NP5, rated current 630A, Size 2/3, surface mount flat connection 3PSIRUS circuit breaker electromechanical fuse monitoring with high-speed closing function, switch / 1NO+1NC, circuit breaker / 1NO+1NC, |
| Fuse Monitoring: | SIRUS circuit breaker electromechanical fuse monitoring | Mounting Type: | Surface mount |
| Fuse Rating: | Size: 2/3 | Terminal Type: | Flat connection |
| Others: | With high-speed closing function, switch / 1NO+1NC circuit breaker / 1NO+1NC | Poles: | 3P |
| In(A): | 630 | Specifications | 3NP54【630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3NP5460-0EA86 |
Specifications may be subject to change without notice
