Key Features
- 1Deliver high-performance AC-3 operation at 185 A and 400 V AC.
- 2Ensure reliable switching with solid-state compatible auxiliary contacts.
- 3Handle demanding loads with a robust 90 kW power rating.
- 4Provide enhanced safety via 1,000 V main and 500 V auxiliary circuit insulation.
- 5Secure your investment with a durable design and 24-month warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Contact Configuration | 3NO | Wiring Method | Bolt Terminal |
| Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
| Coil Power Supply | AC/DC | Number of Poles | 3P |
| Rated Current AC-3 | 185A | Specification | S6 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |

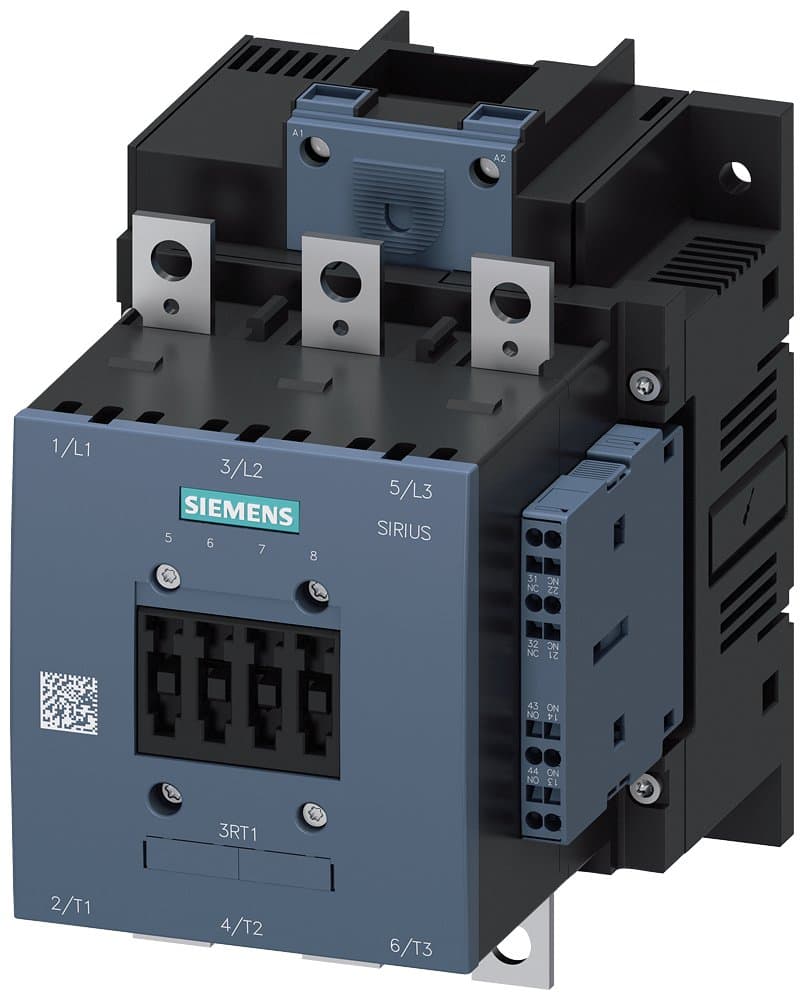

| AL | N | Model Number | 3RT1056-6AP38-0PA5 |
Specifications may be subject to change without notice
