Key Features
- 1Deliver 4kW at 400V for high-performance motor control.
- 2Enhance protection with a pre-installed varistor for reliable operation.
- 3Enable versatile control with 3 NO + 2 NC auxiliary contacts.
- 4Simplify installation using compact design and screw terminals.
- 5Ensure compliance with RoHS, WEEE, and REACH regulations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Contact Form | 3NO | Mechanical Life | 30 million operations (without auxiliary contacts on the main contact) |
| Operating Temperature Range | -25~+60℃ | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 3NO2NC | Coil Voltage | 125V DC |
| Coil Power Supply | DC | Coil Frequency | DC |
| Number of Poles | 3P | Specification | S00 |
| Rated Current AC-3 | 9A | Product Type | Contactor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |

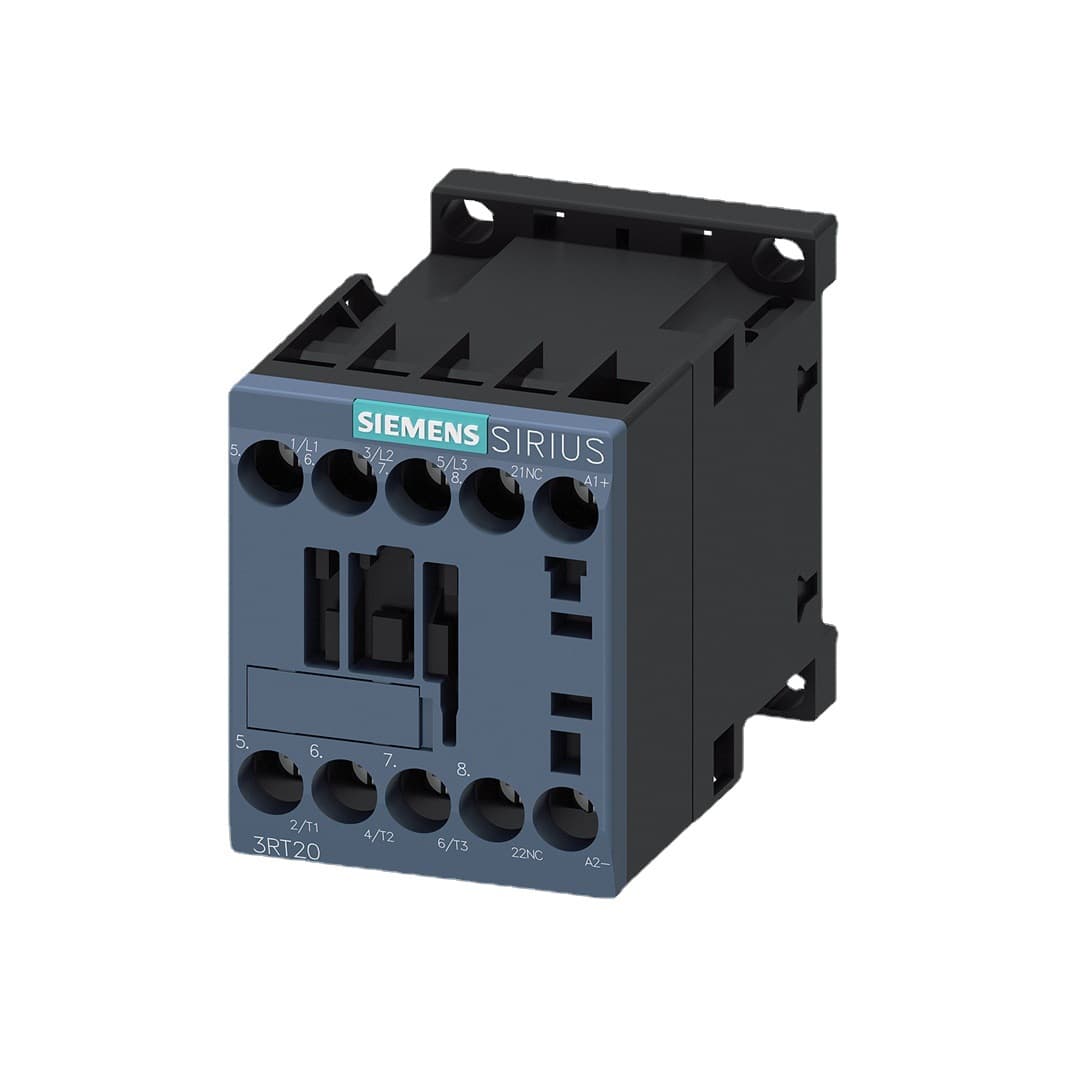

| Model Number | 3RT2016-1DG47 |
Specifications may be subject to change without notice
