Key Features
- 1Deliver high performance in AC-3 applications at 80 A and 37 kW. 2、Integrate a varistor for surge voltage resistance up to 8 kV. 3、Feature a robust auxiliary circuit with 1 NO + 1 NC contacts. 4、Connect easily to PLC outputs with spring-loaded terminals. 5、Ensure durability with up to 10 million mechanical cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 1NO1NC | Coil Frequency | DC |
| Coil Power Supply | DC | Number of Poles | 3P |
| Rated Current AC-3 | 80A | Rating | S3 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |

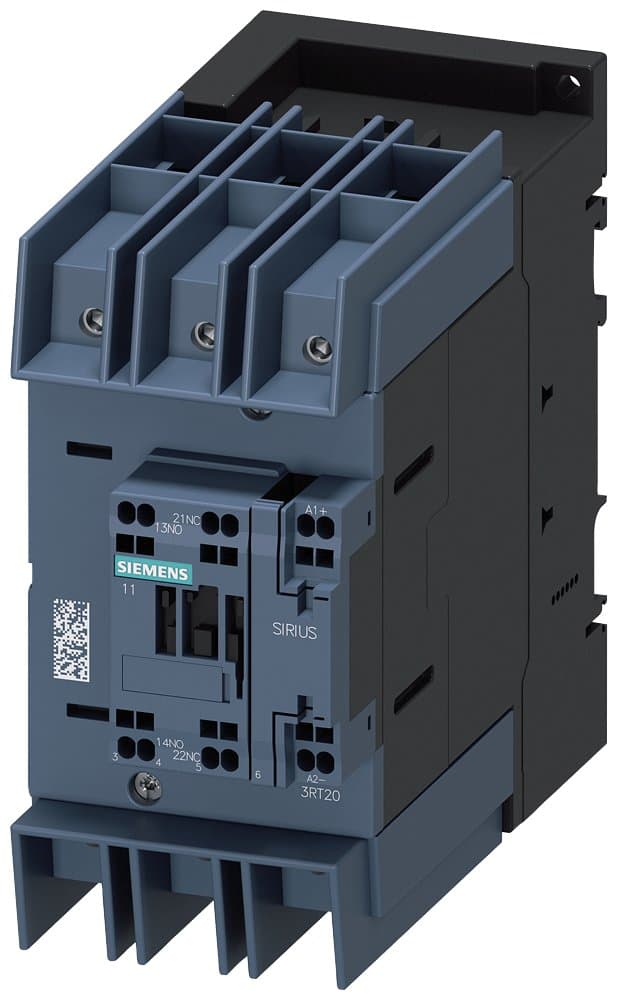

| AL | N | Model Number | 3RT2045-3KB40-0VT0 |
Specifications may be subject to change without notice
